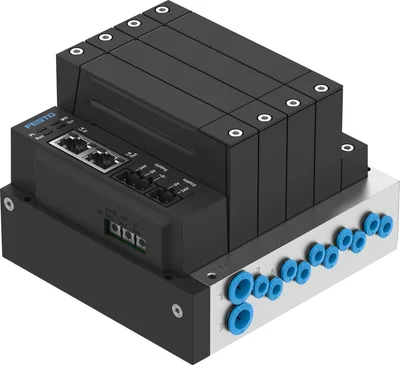

Festo VTEP-

Valve terminal. Proportional valve terminal with piezo technology. Very compact: 10 channels on an overall width of less than 120 mm. Extremely dynamic and precise control of pressure and vacuum. Very flexible thanks to customisable control parameters. Digital communication interface EtherCAT. Very low power consumption. No wear and tear, no particle abrasion. Silent operation. Sustainable operation thanks to efficient control

FestoMFR # VTEP-SKU # YLSR27GHPWNHLG6

Valve terminal structureFixed grid

Grid dimension16

Max. number of valve positions5

Environmental conditionsInterior, dry

Max. number of pressure zones1

Degree of protectionIP20

Have questions?Chat on WhatsApp

About This Product

Festo VTEP-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve terminal structureFixed grid

Grid dimension16

Max. number of valve positions5

Dimensions (W x L x H)71 mm x 110 mm x 82 mm, 87 mm x 110 mm x 82 mm

Instructions on useThe product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas., For indoor use only

Environmental conditionsInterior, dry

Max. number of pressure zones1

Degree of protectionIP20

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Pollution degree2

Note on materialsRoHS compliant

Material sealsNBR

Fire test materialUL94 HB

Nominal altitude of use< 3000 m NHN

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Oxygen

Note on operating and pilot mediumLubricated operation not possible, Condensation in the valve not allowed, If the operating medium contains concentrated oxygen, sufficient pressurisation with ambient air must be guaranteed in order t

Inlet pressure 10, 0.7

Inlet pressure 10, 7

Inlet pressure 10, 101.5

Input pressure 3-0.1, 0

Input pressure 3-1, 0

Input pressure 3-14.5, 0

Operating pressure0.2, 0.7

Operating pressure2, 7

Operating pressure29, 101.5

Pressure regulation range-0.1, 0.6

Pressure regulation range-1, 6

Pressure regulation range-14.5, 87

Note on operating pressureRecommended input pressure 1 to achieve the specified flow rate

Note on pressure regulation rangeEffective pressure regulation range between 10 hPa above input pressure 3 and 10 hPa below input pressure 1. Recommended pressure regulation range between 50 hPa above input pressure 3 and 1000 hPa be

Burst pressure2.1

Burst pressure21

Burst pressure304.5

Valve function3-way proportional-pressure regulator, closed

Type of actuationElectrical

Sealing principleSoft

Standard flow rate (standardised to DIN 1343)18, 42

Flow directionNon-reversible

Suitability for vacuumYes

Reverse polarity protectionFor all electrical connections

Display typeLED

Setpoint value inputDigital

Field bus, connection type2x socket

Field bus, connection systemRJ45

Field bus, protocolEtherCAT®

Electrical connection 1, functionPower supply

Electrical connection 1, connection typeSocket

Electrical connection 1, connector systemTerminal strip

Electrical connection 1, number of connections/cores3

Electrical connection 1, connection pattern00997272

Electrical connection 1, conductor cross section0.2, 1.5

Electrical connection 2, functionDigital input

Electrical connection 2, connection typeSocket

Electrical connection 2, connector systemTerminal strip

Electrical connection 2, number of connections/cores2

Electrical connection 2, connection pattern00997542

Electrical connection 2, conductor cross section0.2, 1.5

Overvoltage categoryII

Nominal operating voltage DC24

Operational voltage range DC20.4, 27.6

Max. current consumption250

Protection against direct and indirect contactPELV

Max. electrical power consumption6

Residual ripple± 10%

Buffer time for voltage failure of logic supply10

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Corrosion resistance class CRC2 - Moderate corrosion stress

Storage temperature-20, 60

Media temperature5, 50

Ambient temperature5, 50

Relative air humidity5 - 85%, Non-condensing

Climatic category3K22 in accordance with EN 60721

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Linearity0.2, 0.3

Hysteresis0.4

Reproducibility0.3, 0.4

Total accuracy0.4 %FS, 0.5 %FS

Pneumatic connection, port 2For tubing outside diameter of 4 mm

Pneumatic connection, port 4For tubing O.D. 4 mm

Pneumatic connection, port 1For tubing outer diameter of 8 mm

Pneumatic connection, port 3For tubing O.D. 8 mm
