How can I get a price quote for FESTO VSPA-B-M52-A-A1?

You can request a fast quote for FESTO VSPA-B-M52-A-A1 from Yılsa Engineering. Reference part number CEY-937FC781ED59. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VSPA-B-M52-A-A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VSPA-B-M52-A-A1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VSPA-B-M52-A-A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

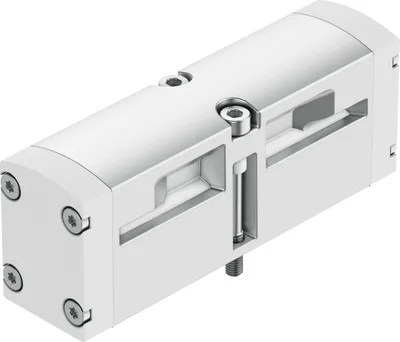

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VSPA-B-M52-A-A1

Pneumatic valve. Conforms to ISO 15407-1. Pneumatic control. Manifold assembly with mixed sizes possible

FESTOMFR # VSPA-B-M52-A-A1SKU # CEY-937FC781ED59

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width26

Operating pressure2, 10

DesignPiston gate valve

Type of resetPneumatic spring

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Conforms to ISO 15407-1. Pneumatic control. Manifold assembly with mixed sizes possible

FESTO VSPA-B-M52-A-A1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width26

Standard nominal flow rate (standardised to DIN 1343)1100

pneumatic working portSub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4

Operating pressure2, 10

DesignPiston gate valve

Type of resetPneumatic spring

Nominal size9

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15407-1, VDMA 24563

Type of pilotingDirect

Flow directionReversible

Symbol00991048

lapOverlap

Pilot pressure2, 10

Flow rate of valve1400

Flow rate of valve on individual sub-base1100

Flow rate of pneumatically interlinked valve1100

Switching time off30

Switching time on18

Explosion protectionZone 2 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Relative air humidity0 - 90%

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Max. tightening torque for valve mounting1.8, 2.2

Product weight180

Pilot air port 12Sub-base size 26 mm to ISO 15407-1

Pilot air port 14Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 1Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 2Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 3Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 4Sub-base size 26 mm to ISO 15407-1

Pneumatic connection, port 5Sub-base size 26 mm to ISO 15407-1

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material screwsSteel, Galvanised
