How can I get a price quote for Festo VACN-N-A1-1-EX4-A?

You can request a fast quote for Festo VACN-N-A1-1-EX4-A from Yılsa Engineering. Reference part number CEY-937FC781A394. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VACN-N-A1-1-EX4-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VACN-N-A1-1-EX4-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VACN-N-A1-1-EX4-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

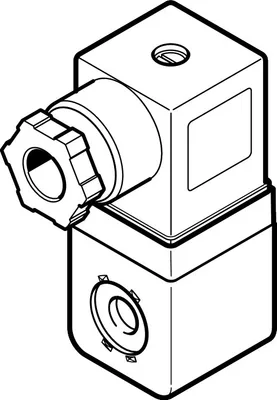

Festo VACN-N-A1-1-EX4-A

Solenoid coil

FestoMFR # VACN-N-A1-1-EX4-ASKU # CEY-937FC781A394

Type of actuationElectrical

Mounting positionAny

Duty cycle100%

Required current consumption0.027

Insulation material classF

Max. input power Pi1.6 W

Have questions?Chat on WhatsApp

About This Product

Festo VACN-N-A1-1-EX4-A (Solenoid coil) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VACN-N-A1-1-EX4-A — price, stock availability and technical specifications.

Festo VACN-N-A1-1-EX4-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of actuationElectrical

Mounting positionAny

Duty cycle100%

Required current consumption0.027

Insulation material classF

Insulation material class of enamelled wireH

Max. input power Pi1.6 W

Max. input voltage UiIIC: 28 V, IIB: 32 V

Max. input current IiIIC: 115 mA, IIB: 195 mA

Max. intrinsically safe circuit input parameterSee certificate

Effective internal capacitance CiNegligibly low

Effective internal inductivity LiNegligibly low

Maritime classificationSee certificate

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Gb (BR), EPL Gb (CN), EPL Gb (GB), EPL Gb (IECEx)

Explosion protectionZone 1 (ATEX), Zone 1 (BR), Zone 1 (CN), Zone 1 (IEC-EX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 21 (UKEX), Zone 22 (ATEX)

Certificate issuing authority2021322307003993, CCC 2021322307003993, CCC-Ex: 2021322307003993, DNV 15.0188, DNV TAA000011J, GYJ21.1326, IECEx PTB 15.0013, PTB 09 ATEX 2043

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx ia IIC/IIB T6/T4 Gb

Explosion ignition protection type for dustEx tb IIIC T80°C/T130°C Db

Explosion ambient temperatureT4/T130°C: -40°C <= Ta <= +85°C, T6/T80°C: -40°C <= Ta <= +50°C

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP65

Ambient temperature-20, 50

Product weight114

Electrical connectionType A, To DIN EN 175301-803

Type of mountingVia knurled nut
