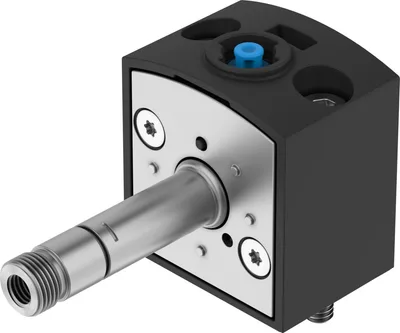

Festo VSCS-B-M32C-MT-WB-F8

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

FestoMFR # VSCS-B-M32C-MT-WB-F8SKU # YLSKAJMZM3UHOXO

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

pneumatic working portSub-base size 30 mm to ISO 15218

Operating pressure0.2, 1

Operating pressure2, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

Festo VSCS-B-M32C-MT-WB-F8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

Standard nominal flow rate (standardised to DIN 1343)34

pneumatic working portSub-base size 30 mm to ISO 15218

Operating pressure0.2, 1

Operating pressure2, 10

Operating pressure29, 145

DesignSub-base valve

Type of resetMechanical spring

Degree of protectionIP65

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15218

Manual overrideDetenting via accessory, Non-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991308

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Max. switching frequency5

Switching time off8

Switching time on8

Duty cycle100%

Max. positive test pulse with 0 signal3000

Max. negative test pulse with 1 signal3400

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Ambient temperature-10, 50

Type of mountingCNOMO

Note on materialsRoHS compliant

Material sealsNBR

Accessories 24

Genuine accessories that can be used with the Festo VSCS-B-M32C-MT-WB-F8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
IBS-6X10	Inscription label · General accessories
AHB-MD/MF/MV	Manual override · General accessories
VMPAL-ST-AP-10	Inscription label holder · General accessories
VACF-B-B2-5	Solenoid coil · Electrical accessories
VACF-B-B2-1	Solenoid coil · Electrical accessories
VACF-B-B2-7	Solenoid coil · Electrical accessories
VACF-B-B2-1A	Solenoid coil · Electrical accessories
VACF-B-B2-7A	Solenoid coil · Electrical accessories
VACF-B-B2-16B	Solenoid coil · Electrical accessories
VACF-B-B2-3W	Solenoid coil · Electrical accessories
VACF-B-C1-5	Solenoid coil · Electrical accessories
VACF-B-C1-1	Solenoid coil · Electrical accessories
VACF-B-C1-7	Solenoid coil · Electrical accessories
VACF-B-C1-1A	Solenoid coil · Electrical accessories
VACF-B-C1-7A	Solenoid coil · Electrical accessories
VACF-B-C1-16B	Solenoid coil · Electrical accessories
VACF-B-C1-3W	Solenoid coil · Electrical accessories
VACF-A-A1-5	Solenoid coil · Electrical accessories
VACF-A-A1-1	Solenoid coil · Electrical accessories
VACF-A-A1-7	Solenoid coil · Electrical accessories
VACF-A-A1-1A	Solenoid coil · Electrical accessories
VACF-A-A1-7A	Solenoid coil · Electrical accessories
VACF-A-A1-16B	Solenoid coil · Electrical accessories
VACF-A-A1-3W	Solenoid coil · Electrical accessories
