How can I get a price quote for Festo VSCS-B-M32C-MD-WB-F8?

You can request a fast quote for Festo VSCS-B-M32C-MD-WB-F8 from Yılsa Engineering. Reference part number YLSXGX2HRDWDU0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSCS-B-M32C-MD-WB-F8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSCS-B-M32C-MD-WB-F8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSCS-B-M32C-MD-WB-F8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

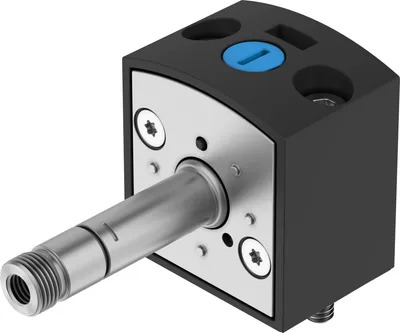

Festo VSCS-B-M32C-MD-WB-F8

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

FestoMFR # VSCS-B-M32C-MD-WB-F8SKU # YLSXGX2HRDWDU0

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

pneumatic working portSub-base size 30 mm to ISO 15218

Operating pressure0.2, 1

Operating pressure2, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

Festo VSCS-B-M32C-MD-WB-F8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

Standard nominal flow rate (standardised to DIN 1343)34

pneumatic working portSub-base size 30 mm to ISO 15218

Operating pressure0.2, 1

Operating pressure2, 10

Operating pressure29, 145

DesignSub-base valve

Type of resetMechanical spring

Degree of protectionIP65

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15218

Manual overrideDetenting, Non-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991308

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Max. switching frequency5

Switching time off8

Switching time on8

Duty cycle100%

Max. positive test pulse with 0 signal3000

Max. negative test pulse with 1 signal3400

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Ambient temperature-10, 50

Type of mountingCNOMO

Note on materialsRoHS compliant

Material sealsNBR

Accessories 23

Genuine accessories that can be used with the Festo VSCS-B-M32C-MD-WB-F8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
IBS-6X10	Inscription label · General accessories
VMPAL-ST-AP-10	Inscription label holder · General accessories
VACF-B-B2-5	Solenoid coil · Electrical accessories
VACF-B-B2-1	Solenoid coil · Electrical accessories
VACF-B-B2-7	Solenoid coil · Electrical accessories
VACF-B-B2-1A	Solenoid coil · Electrical accessories
VACF-B-B2-7A	Solenoid coil · Electrical accessories
VACF-B-B2-16B	Solenoid coil · Electrical accessories
VACF-B-B2-3W	Solenoid coil · Electrical accessories
VACF-B-C1-5	Solenoid coil · Electrical accessories
VACF-B-C1-1	Solenoid coil · Electrical accessories
VACF-B-C1-7	Solenoid coil · Electrical accessories
VACF-B-C1-1A	Solenoid coil · Electrical accessories
VACF-B-C1-7A	Solenoid coil · Electrical accessories
VACF-B-C1-16B	Solenoid coil · Electrical accessories
VACF-B-C1-3W	Solenoid coil · Electrical accessories
VACF-A-A1-5	Solenoid coil · Electrical accessories
VACF-A-A1-1	Solenoid coil · Electrical accessories
VACF-A-A1-7	Solenoid coil · Electrical accessories
VACF-A-A1-1A	Solenoid coil · Electrical accessories
VACF-A-A1-7A	Solenoid coil · Electrical accessories
VACF-A-A1-16B	Solenoid coil · Electrical accessories
VACF-A-A1-3W	Solenoid coil · Electrical accessories
