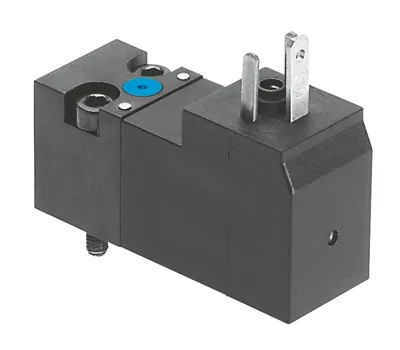

Festo VSCS-B-M32-MH-WA-1C1-8

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

FestoMFR # VSCS-B-M32-MH-WA-1C1-8SKU # YLS1V8DQVWYAI4V

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width15

pneumatic working portSub-base size 15 mm to ISO 15218

Operating voltage24 V DC

Operating pressure0.15, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override

Festo VSCS-B-M32-MH-WA-1C1-8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width15

Standard nominal flow rate (standardised to DIN 1343)13.5

pneumatic working portSub-base size 15 mm to ISO 15218

Operating voltage24 V DC

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Type of resetMechanical spring

Degree of protectionIP65

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15218

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991308

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Switching time off6

Switching time on8

Duty cycle100%

Characteristic coil data24 V DC: 1.3 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Media temperature-5, 50

Ambient temperature-5, 50

Electrical connectionType C, To DIN EN 175301-803

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material sealsNBR

Accessories 4

Genuine accessories that can be used with the Festo VSCS-B-M32-MH-WA-1C1-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VACF-B-C1-1	Solenoid coil · Electrical accessories
NEBV-C1SW2L-P-K-2.5-N-LE2-S9	Connecting cable · Connecting cables
NEBV-C1SW2L-P-K-5-N-LE2-S9	Connecting cable · Connecting cables
NEBV-C1SW2L-P-K-10-N-LE2-S9	Connecting cable · Connecting cables
