Festo
VUVG-B10Z-M32U-RZT-F-1T1L
MFR #VUVG-B10Z-M32U-RZT-F-1T1L
SKU #YLSLK5RUJMHQDEO
Photo may not represent actual item. Refer to name and product specs for all details.

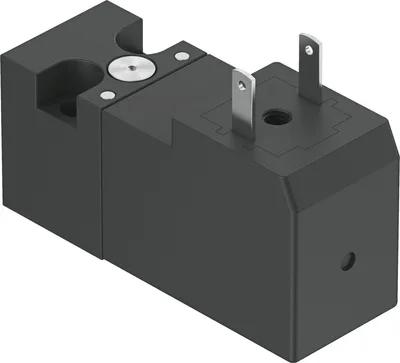

Festo VSCS-B-M32-MD-WA-1E1-8
Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override
Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width15
pneumatic working portSub-base size 15 mm to ISO 15218
Operating voltage24 V DC
Operating pressure0.15, 0.8
About This Product
Solenoid valve. Valve actuator for electrical actuation of valve bodies. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override
Festo VSCS-B-M32-MD-WA-1E1-8
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function3/2-way, single solenoid, closed
Type of actuationElectrical
Construction width15
Standard nominal flow rate (standardised to DIN 1343)13.5
pneumatic working portSub-base size 15 mm to ISO 15218
Operating voltage24 V DC
Operating pressure0.15, 0.8
Operating pressure1.5, 8
Operating pressure21.75, 116
Type of resetMechanical spring
Degree of protectionIP65
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 15218
Manual overrideDetenting, Non-detenting
Type of pilotingDirect
Flow directionNon-reversible
Symbol00991308
lapUnderlap
Note on forced dynamizationSwitching frequency min. 1/week
Switching time off6
Switching time on8
Duty cycle100%
Characteristic coil data24 V DC: 1.3 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-C1-L
Media temperature-5, 50
Ambient temperature-5, 50
Electrical connectionPlug pattern type C to industry standard, 9.4 mm
Pneumatic connection, port 1Sub-base
Pneumatic connection, port 2Sub-base
Pneumatic connection, port 3Sub-base
Note on materialsRoHS compliant
Material sealsNBR
