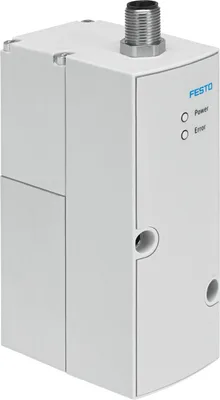

Festo VPPX-6F-L-1-F-0L10H-S1

Proportional-pressure regulator. Pressure regulator with additional sensor input. Programmable, freely adjustable PID controller. Multi-sensor control (cascade control). Control characteristic adjustable via software FCT (Festo Configuration Tool). Integrated pressure sensor with separate output. Pressure is maintained if the controller fails

FestoMFR # VPPX-6F-L-1-F-0L10H-S1SKU # YLSMPJVMNAI9ZF

Nominal size, supply6

Nominal size, exhaust4.5

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

DesignPiloted diaphragm regulator

Have questions?Chat on WhatsApp

About This Product

Festo VPPX-6F-L-1-F-0L10H-S1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, supply6

Nominal size, exhaust4.5

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

DesignPiloted diaphragm regulator

Short circuit current ratingFor all electrical connections

Safety instructionsSafety position VPPX: if the power supply cable is interrupted, output pressure is maintained unregulated.

Symbol00995303

Reverse polarity protectionFor all electrical connections

Type of resetMechanical spring

Type of pilotingPiloted

Valve function3-way proportional pressure regulator

Display typeLED

Pressure regulation range0.1, 10

Inlet pressure 10, 11

Max. pressure hysteresis0.05

Standard nominal flow rate (standardised to DIN 1343)1400

Operational voltage range DC21.6, 26.4

Max. current consumption300

Duty cycle100%

Max. electrical power consumption7

Residual ripple10%

Signal range analogue output0 - 10 V, 0 - 20 mA, 4 - 20 mA

Signal range analogue input0 - 10 V, 4 - 20 mA, 0 - 20 mA

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation not possible

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E322346

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature10, 50

Degree of protectionIP65

Ambient temperature0, 60

Product weight400

Temperature cooefficient0.04

Repetition accuracy FS0.5

Repetition accuracy in ± %FS0.5

Electrical connectionM12, Plug

Type of mountingWith through-hole, With accessories

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material housingWrought aluminium alloy, anodised

Accessories 32

Genuine accessories that can be used with the Festo VPPX-6F-L-1-F-0L10H-S1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/2-12-I	Push-in fitting · Fittings
PUN-H-10X1,5-NT	Plastic tubing · Tubes
VABM-P1-SF-G14-2-P3	Manifold block · Connection accessories
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
VABM-P1-SF-G14-4-P3	Manifold block · Connection accessories
VAVE-P8-VPS	Programming cable · Electrical accessories
QS-G1/2-12	Push-in fitting · Fittings
U-1/2	Silencer · Silencer
PUN-H-10X1,5-BL	Plastic tubing · Tubes
NEBU-M12W8-K-2-N-LE8	Plug socket with cable · Electrical accessories
PUN-H-10X1,5-SW	Plastic tubing · Tubes
QSL-G1/2-12	Push-in L-fitting · Fittings
PUN-H-12X2-NT	Plastic tubing · Tubes
SIM-M12-8GD-2-PU	Plug socket with cable · Electrical accessories
QSL-G1/4-10	Push-in L-fitting · Fittings
NEFC-M12G5-0.3-U1G5	Adapter · Electrical accessories
QS-G1/4-10-I	Push-in fitting · Fittings
QS-G1/4-10	Push-in fitting · Fittings
PUN-H-12X2-BL	Plastic tubing · Tubes
VABB-P1	Cover plate · Connection accessories
VABM-P1-SF-G14-3-P3	Manifold block · Connection accessories
PUN-H-12X2-TBL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
NEDU-L1R2-V9-M12G8-E-LE5-5R1-LE3-5R2	DUO cable · Electrical accessories
SIM-M12-8GD-5-PU	Plug socket with cable · Electrical accessories
NEBU-M12W8-K-5-N-LE8	Plug socket with cable · Electrical accessories
NEBV-M12G8-KD-3-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-2-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-5-M12G4	Connecting cable · Electrical accessories
NEBU-M12W8-K-10-N-LE8	Plug socket with cable · Electrical accessories
SIM-M12-8GD-10-PU	Plug socket with cable · Electrical accessories
NEDU-L2R1-V8-M12G5-M12G5	Push-in T-connector · Electrical accessories
