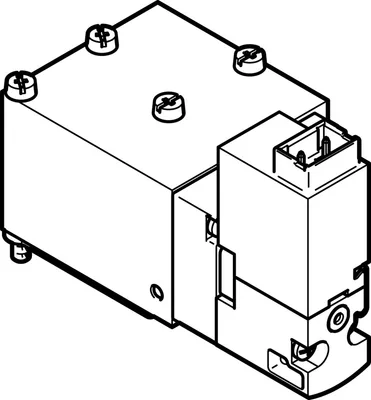

FESTO VOVG-B12-M52Q-AH-F-1H3

Solenoid valve. Very compact valve for solutions with high component density. For soft-start/quick exhaust valves MS6-SV, MS series. In-line, semi in-line and sub-base valve. Manifold rail for 2 ... 10 valves

FESTOMFR # VOVG-B12-M52Q-AH-F-1H3SKU # CEY-937FC781D6BC

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width25

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.2, 0.8

Have questions?Chat on WhatsApp

About This Product

FESTO VOVG-B12-M52Q-AH-F-1H3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width25

Standard nominal flow rate (standardised to DIN 1343)180

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

DesignPiston gate valve

Type of resetPneumatic spring

Degree of protectionIP40

Nominal size2.1

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Flow directionNon-reversible

Symbol00991049

lapOverlap

Switching time off18

Switching time on15

Characteristic coil data24 V DC: 1.0 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Electrical connectionPlug

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingWrought aluminium alloy

Accessories 13

Genuine accessories that can be used with the FESTO VOVG-B12-M52Q-AH-F-1H3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
MHAP2-BG-NRH-35	DIN rail attachment · Mounting accessories
VABM-C7-12M-G18-2	Manifold rail · Connection accessories
VABM-C7-12M-G18-3	Manifold rail · Connection accessories
VABM-C7-12M-G18-4	Manifold rail · Connection accessories
VABM-C7-12M-G18-5	Manifold rail · Connection accessories
VABM-C7-12M-G18-6	Manifold rail · Connection accessories
VABM-C7-12M-G18-7	Manifold rail · Connection accessories
VABM-C7-12M-G18-8	Manifold rail · Connection accessories
VABM-C7-12M-G18-9	Manifold rail · Connection accessories
VABM-C7-12M-G18-10	Manifold rail · Connection accessories
