How can I get a price quote for FESTO VOVG-B12-M52Q-AH-F-1H2?

You can request a fast quote for FESTO VOVG-B12-M52Q-AH-F-1H2 from Yılsa Engineering. Reference part number CEY-937FC781D723. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VOVG-B12-M52Q-AH-F-1H2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VOVG-B12-M52Q-AH-F-1H2 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VOVG-B12-M52Q-AH-F-1H2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

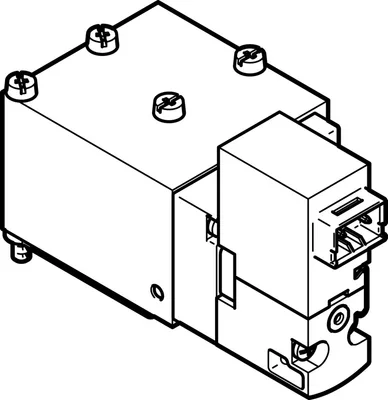

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VOVG-B12-M52Q-AH-F-1H2

Solenoid valve. Very compact valve for solutions with high component density. For soft-start/quick exhaust valves MS6-SV, MS series. In-line, semi in-line and sub-base valve. Manifold rail for 2 ... 10 valves

FESTOMFR # VOVG-B12-M52Q-AH-F-1H2SKU # CEY-937FC781D723

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width25

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.2, 0.8

Have questions?Chat on WhatsApp

About This Product

FESTO VOVG-B12-M52Q-AH-F-1H2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width25

Standard nominal flow rate (standardised to DIN 1343)180

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

DesignPiston gate valve

Type of resetPneumatic spring

Degree of protectionIP40

Nominal size2.1

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Flow directionNon-reversible

Symbol00991049

lapOverlap

Switching time off18

Switching time on15

Characteristic coil data24 V DC: 1.0 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Electrical connectionPlug

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingWrought aluminium alloy

Accessories 13

Genuine accessories that can be used with the FESTO VOVG-B12-M52Q-AH-F-1H2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
MHAP2-BG-NRH-35	DIN rail attachment · Mounting accessories
VABM-C7-12M-G18-2	Manifold rail · Connection accessories
VABM-C7-12M-G18-3	Manifold rail · Connection accessories
VABM-C7-12M-G18-4	Manifold rail · Connection accessories
VABM-C7-12M-G18-5	Manifold rail · Connection accessories
VABM-C7-12M-G18-6	Manifold rail · Connection accessories
VABM-C7-12M-G18-7	Manifold rail · Connection accessories
VABM-C7-12M-G18-8	Manifold rail · Connection accessories
VABM-C7-12M-G18-9	Manifold rail · Connection accessories
VABM-C7-12M-G18-10	Manifold rail · Connection accessories
