How can I get a price quote for FESTO VOVC-BT-T32C-MT-F-1T1?

You can request a fast quote for FESTO VOVC-BT-T32C-MT-F-1T1 from Yılsa Engineering. Reference part number CEY-937FC781CF9B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VOVC-BT-T32C-MT-F-1T1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VOVC-BT-T32C-MT-F-1T1 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VOVC-BT-T32C-MT-F-1T1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

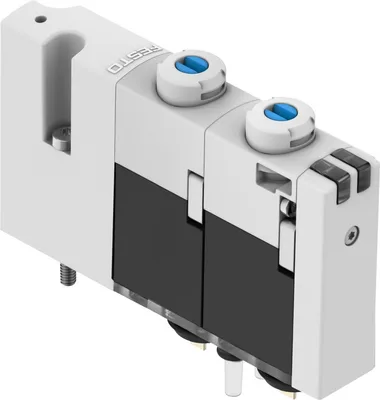

FESTO VOVC-BT-T32C-MT-F-1T1

Solenoid valve. For valve terminal VTOC. Optimal use of the installation space yet maximum performance. Detenting or non-detenting manual override

FESTOMFR # VOVC-BT-T32C-MT-F-1T1SKU # CEY-937FC781CF9B

Valve function2x3/2 closed monostable

Type of actuationElectrical

Valve size10

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. For valve terminal VTOC. Optimal use of the installation space yet maximum performance. Detenting or non-detenting manual override

FESTO VOVC-BT-T32C-MT-F-1T1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x3/2 closed monostable

Type of actuationElectrical

Valve size10

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0, 0.8

Operating pressure0, 8

Operating pressure0, 116

DesignPoppet valve with spring return

Type of resetMechanical spring

Degree of protectionIP40

Approvalc UL us - Recognised (Oil)

Nominal size0.65

Exhaust-air functionCannot be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00992266

lapUnderlap

Signal status displayLED

b value0.24

C value0.048

Flow rate of valve10

Flow rate of pneumatically interlinked valve10

Switching time off4.7

Switching time on5.2

Max. positive test pulse with 0 signal600

Max. negative test pulse with 1 signal800

Characteristic coil data24 V DC: low-current phase 0.3 W, high-current phase 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight30

Electrical connectionVia E-box

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Pneumatic connection, port 4Sub-base

Note on materialsRoHS compliant

Material sealsNBR, PU

Material housingReinforced PA
