How can I get a price quote for Festo VMEF-STCZ-M32-M-G18?

You can request a fast quote for Festo VMEF-STCZ-M32-M-G18 from Yılsa Engineering. Reference part number YLSPAOOBZOYPFOX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VMEF-STCZ-M32-M-G18 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VMEF-STCZ-M32-M-G18 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VMEF-STCZ-M32-M-G18?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

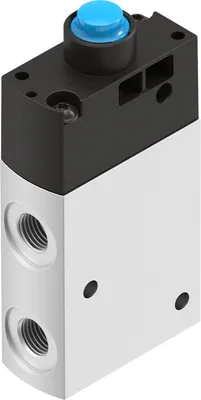

Festo VMEF-STCZ-M32-M-G18

Stem actuated valve. Durable thanks to tried-and-tested piston slide and disc seat valve technology. Robust metal housing. Outstanding pneumatic performance. Attractive price. Ergonomic and safe operation. Minimal actuating forces. Modern design. Reverse operation possible

FestoMFR # VMEF-STCZ-M32-M-G18SKU # YLSPAOOBZOYPFOX

Valve function3/2-way, single solenoid, closed

Type of actuationMechanical

Construction width20

pneumatic working portG1/8

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Have questions?Chat on WhatsApp

About This Product

Festo VMEF-STCZ-M32-M-G18

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationMechanical

Construction width20

Standard nominal flow rate (standardised to DIN 1343)750

pneumatic working portG1/8

Operating pressure-0.095, 1

Operating pressure-0.95, 10

DesignPoppet seat

Type of resetMechanical spring

Nominal size5.6

Instructions on useDo not use as a mechanical stop

Sealing principleSoft

Mounting positionAny

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00995674

lapZero lap

Pilot pressure0.3, 1

Pilot pressure3, 10

Pilot pressure43.5, 145

Max. switching frequency3

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Actuating force14

Product weight131

Type of mountingWith through-hole

Pilot air port 12/14M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Note on materialsRoHS compliant

Material coverReinforced PA

Material sealsNBR

Material housingAnodised wrought aluminium alloy

Accessories 29

Genuine accessories that can be used with the Festo VMEF-STCZ-M32-M-G18 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-8X1,25-NT	Plastic tubing · Tubes
U-1/8-50	Silencer · Silencer
QS-G1/8-8-I	Push-in fitting · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
AMTE-M-LH-G18	Silencer · Silencer
QSL-G1/8-8	Push-in L-fitting · Fittings
PUN-H-8X1,25-SW	Plastic tubing · Tubes
QSLL-G1/8-8	Push-in L-fitting, long · Fittings
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
U-1/8	Silencer · Silencer
QS-G1/8-8	Push-in fitting · Fittings
U-1/8-B	Silencer · Silencer
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
VAME-R4-20-PA	Mounting kit · Mounting accessories
