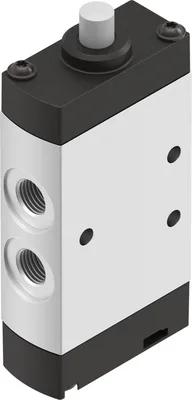

Festo VMEF-S-M52-E-G18

Stem actuated valve. Durable thanks to tried-and-tested piston slide and disc seat valve technology. Robust metal housing. Outstanding pneumatic performance. Attractive price. Ergonomic and safe operation. Minimal actuating forces. Modern design. Reverse operation possible

FestoMFR # VMEF-S-M52-E-G18SKU # YLS97X15PFPOLDP

Valve function5/2-way, single solenoid

Type of actuationMechanical

Construction width20

pneumatic working portG1/8

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Have questions?Chat on WhatsApp

About This Product

Festo VMEF-S-M52-E-G18

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationMechanical

Construction width20

Standard nominal flow rate (standardised to DIN 1343)750

pneumatic working portG1/8

Operating pressure-0.095, 1

Operating pressure-0.95, 10

DesignPiston gate valve

Type of resetPneumatic spring

Nominal size5.2

Instructions on useDo not use as a mechanical stop

Sealing principleSoft

Mounting positionAny

Type of pilotingDirect

Flow directionReversible

Symbol00992217

lapOverlap

Max. switching frequency3

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Actuating force28

Product weight144

Type of mountingWith through-hole

Pilot air port 12/14M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material coverReinforced PA

Material sealsNBR

Material housingAnodised wrought aluminium alloy

Accessories 28

Genuine accessories that can be used with the Festo VMEF-S-M52-E-G18 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AMTE-M-LH-G18	Silencer · Silencer
QS-G1/8-8	Push-in fitting · Fittings
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QS-G1/8-8-I	Push-in fitting · Fittings
PUN-H-8X1,25-BL	Plastic tubing · Tubes
QSL-G1/8-8	Push-in L-fitting · Fittings
PUN-H-8X1,25-SW	Plastic tubing · Tubes
QSLL-G1/8-8	Push-in L-fitting, long · Fittings
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
U-1/8	Silencer · Silencer
U-1/8-50	Silencer · Silencer
U-1/8-B	Silencer · Silencer
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
