How can I get a price quote for Festo VL/O-3-PK-3?

You can request a fast quote for Festo VL/O-3-PK-3 from Yılsa Engineering. Reference part number CEY-937FC7827B5F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VL/O-3-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VL/O-3-PK-3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VL/O-3-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

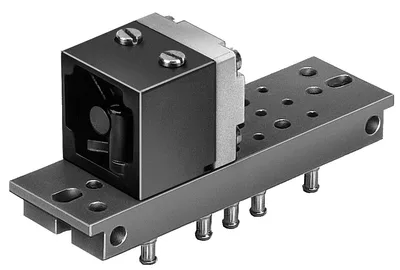

Festo VL/O-3-PK-3

Pneumatic valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

FestoMFR # VL/O-3-PK-3SKU # CEY-937FC7827B5F

Valve function3/2-way, single solenoid, open

pneumatic working portPK-3

Operating pressure0, 0.8

Operating pressure0, 8

DesignPoppet seat

Nominal size2.5

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

Festo VL/O-3-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, open

Standard nominal flow rate (standardised to DIN 1343)100

pneumatic working portPK-3

Operating pressure0, 0.8

Operating pressure0, 8

DesignPoppet seat

Nominal size2.5

Symbol00991030

Switching time off50

Switching time on12

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Pilot mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Ambient temperature-10, 60

Product weight110

Type of mountingOn sub-base, On mounting frame, With through-hole

Pneumatic connection, port 1PK-3

Pneumatic connection, port 4PK-3

Pneumatic connection, port 5PK-3

Material sub-baseBrass, Reinforced PPS

Material sealsNBR

Material housingDie-cast zinc

Accessories 4

Genuine accessories that can be used with the Festo VL/O-3-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DIN 84-M6X18-4.8	Socket head screw · Mounting accessories
DIN 84-M6X12-4.8	Socket head screw · Mounting accessories
NRRQ-2N	Mounting frame · Mounting accessories
NRW-9/1,5-B	Mounting bracket · Mounting accessories
