How can I get a price quote for FESTO VL/O-3-1/2-EX?

You can request a fast quote for FESTO VL/O-3-1/2-EX from Yılsa Engineering. Reference part number CEY-937FC782013D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VL/O-3-1/2-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VL/O-3-1/2-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VL/O-3-1/2-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

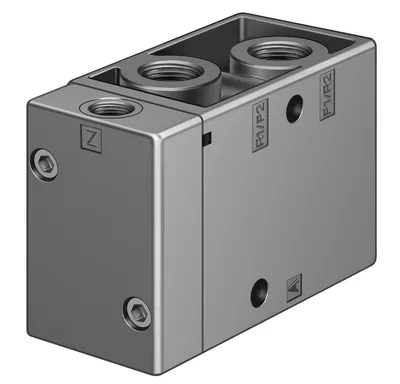

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VL/O-3-1/2-EX

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # VL/O-3-1/2-EXSKU # CEY-937FC782013D

Valve function3/2-way, monostable, open/closed

Type of actuationPneumatic

Construction width52

pneumatic working portG1/2

Operating pressure-0.095, 1

Operating pressure-0.95, 10

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTO VL/O-3-1/2-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, monostable, open/closed

Type of actuationPneumatic

Construction width52

Standard nominal flow rate (standardised to DIN 1343)3700

pneumatic working portG1/2

Operating pressure-0.095, 1

Operating pressure-0.95, 10

DesignPoppet seat

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-10°C <= Ta <= +60°C

Explosion protection certification outside the EUEPL Gb (GB)

Nominal size14

Grid dimension69

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNone

Type of pilotingDirect

Pilot air supplyExternal

Flow directionReversible

Symbol00991030

lapUnderlap

Pilot pressure0.1, 1

Pilot pressure1, 10

b value0.3

Switching time off30

Switching time on17

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-10, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight860

Type of mountingOn manifold rail, With through-hole

Breather connectionM3

Pilot air port 110G1/4

Pilot air port 12G1/4

Pneumatic connection, port 1G1/2

Pneumatic connection, port 11G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1/2

Pneumatic port 33G1/2

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 10

Genuine accessories that can be used with the FESTO VL/O-3-1/2-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MF-LD-12-24DC	Illuminating seal · Electrical accessories
MF-LD-230AC	Illuminating seal · Electrical accessories
PUN-H-12X2-NT	Plastic tubing · Tubes
U-1/2	Silencer · Silencer
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
QS-G1/2-12	Push-in fitting · Fittings
QS-G1/2-12-I	Push-in fitting · Fittings
QSL-G1/2-12	Push-in L-fitting · Fittings
