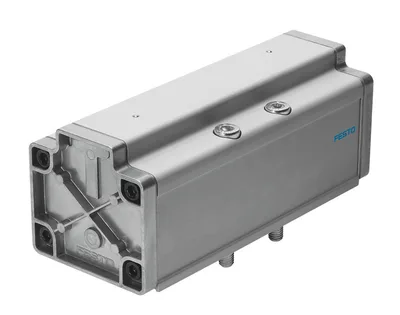

Festo VL-5/3G-3/4-D-4

Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control

FestoMFR # VL-5/3G-3/4-D-4SKU # CEY-937FC7826F51

Valve function5/3-way, closed

Type of actuationPneumatic

Construction width76

pneumatic working portSub-base size 4 to ISO 5599-1, G3/4

Operating pressure-0.9, 16

DesignPiston gate valve

Have questions?Chat on WhatsApp

About This Product

Festo VL-5/3G-3/4-D-4 (Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VL-5/3G-3/4-D-4 — price, stock availability and technical specifications.

Festo VL-5/3G-3/4-D-4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, closed

Type of actuationPneumatic

Construction width76

Standard nominal flow rate (standardised to DIN 1343)4800

pneumatic working portSub-base size 4 to ISO 5599-1, G3/4

Operating pressure-0.9, 16

DesignPiston gate valve

Type of resetMechanical spring

Nominal size18

Grid dimension82

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNone

ISO code406

Type of pilotingDirect

Flow directionReversible

Symbol00991018

lapOverlap

Pilot pressure3, 16

Switching time off130

Switching time on40

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight2000

Type of mountingOn sub-base, Via through-hole and screw

Pilot air port 12Sub-base size 4 to ISO 5599-1

Pilot air port 14Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 4 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsNBR

Material housingAluminium

Accessories 5

Genuine accessories that can be used with the Festo VL-5/3G-3/4-D-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEV-4DA/DB-ISO	End plate kit · Connection accessories
NAW-3/4-4E-ISO	Manifold sub-base with angled connections · Connection accessories
NDV-4-ISO	Cover plate · Connection accessories
NSC-3/4-4-ISO	Isolating disc · Connection accessories
NAS-3/4-4A-ISO	Individual sub-base · Connection accessories
