How can I get a price quote for FESTO VL-5/2-D-2-FR-C-EX?

You can request a fast quote for FESTO VL-5/2-D-2-FR-C-EX from Yılsa Engineering. Reference part number CEY-937FC7820150. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VL-5/2-D-2-FR-C-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VL-5/2-D-2-FR-C-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VL-5/2-D-2-FR-C-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

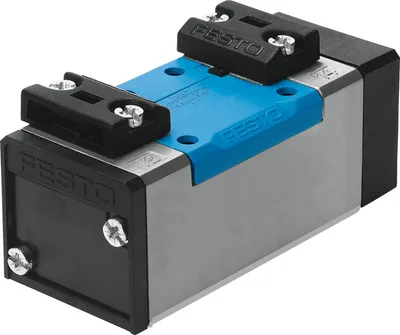

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VL-5/2-D-2-FR-C-EX

Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control

FESTOMFR # VL-5/2-D-2-FR-C-EXSKU # CEY-937FC7820150

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width54

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Have questions?Chat on WhatsApp

About This Product

FESTO VL-5/2-D-2-FR-C-EX (Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VL-5/2-D-2-FR-C-EX — price, stock availability and technical specifications.

FESTO VL-5/2-D-2-FR-C-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width54

Standard nominal flow rate (standardised to DIN 1343)2300

pneumatic working portSub-base size 2 to ISO 5599-1, G3/8

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-10°C <= Ta <= +60°C

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Nominal size11.5

Grid dimension56

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNone

ISO code204

Type of pilotingDirect

Flow directionReversible

Symbol00991029

lapOverlap

Pilot pressure0.3, 1.6

Pilot pressure3, 16

Switching time off39

Switching time on11

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight550

Type of mountingOn sub-base, Via through-hole and screw

Pilot air port 14Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium
