How can I get a price quote for Festo VL-5/2-3/4-D-4?

You can request a fast quote for Festo VL-5/2-3/4-D-4 from Yılsa Engineering. Reference part number CEY-937FC7826F53. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VL-5/2-3/4-D-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VL-5/2-3/4-D-4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VL-5/2-3/4-D-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

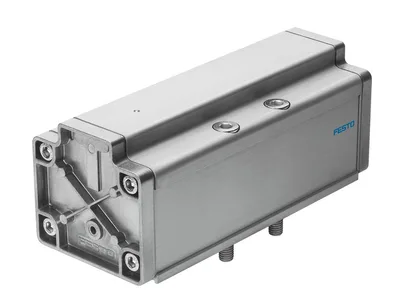

Festo VL-5/2-3/4-D-4

Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control

FestoMFR # VL-5/2-3/4-D-4SKU # CEY-937FC7826F53

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width76

pneumatic working portSub-base size 4 to ISO 5599-1, G3/4

Operating pressure-0.9, 16

DesignPiston gate valve

Have questions?Chat on WhatsApp

About This Product

Festo VL-5/2-3/4-D-4 (Pneumatic valve. Conforms to ISO 5599-1. Pneumatic control) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VL-5/2-3/4-D-4 — price, stock availability and technical specifications.

Festo VL-5/2-3/4-D-4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width76

Standard nominal flow rate (standardised to DIN 1343)6000

pneumatic working portSub-base size 4 to ISO 5599-1, G3/4

Operating pressure-0.9, 16

DesignPiston gate valve

Type of resetMechanical spring

Nominal size18

Grid dimension82

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNone

ISO code404

Type of pilotingDirect

Flow directionReversible

Symbol00991029

lapOverlap

Pilot pressure3, 16

Switching time off90

Switching time on25

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight1800

Type of mountingOn sub-base, Via through-hole and screw

Pilot air port 14Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 4 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 4 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsNBR

Material housingAluminium

Accessories 5

Genuine accessories that can be used with the Festo VL-5/2-3/4-D-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEV-4DA/DB-ISO	End plate kit · Connection accessories
NAW-3/4-4E-ISO	Manifold sub-base with angled connections · Connection accessories
NDV-4-ISO	Cover plate · Connection accessories
NSC-3/4-4-ISO	Isolating disc · Connection accessories
NAS-3/4-4A-ISO	Individual sub-base · Connection accessories
