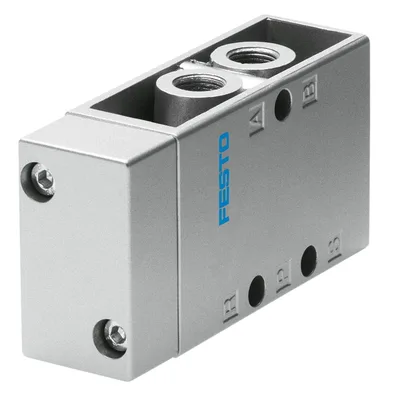

FESTO VL-5-1/2-EX

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # VL-5-1/2-EXSKU # CEY-937FC7820139

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width52

pneumatic working portG1/2

Operating pressure0, 1

Operating pressure0, 10

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTO VL-5-1/2-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Construction width52

Standard nominal flow rate (standardised to DIN 1343)3700

pneumatic working portG1/2

Operating pressure0, 1

Operating pressure0, 10

DesignPoppet seat

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-10°C <= Ta <= +60°C

Explosion protection certification outside the EUEPL Gb (GB)

Nominal size14

Grid dimension69

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNone

Type of pilotingDirect

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00991001

lapUnderlap

Pilot pressure0.12, 1

Pilot pressure1.2, 10

b value0.32

C value17.65

Switching time off27

Switching time on3

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-10, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 60

Product weight1070

Type of mountingOn manifold rail, With through-hole

Breather connectionM3

Pilot air port 14G1/4

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1/2

Pneumatic connection, port 4G1/2

Pneumatic connection, port 5G1/2

Note on materialsRoHS compliant

Material sealsNBR, TPE-U(PU)

Material housingDie-cast aluminium

Accessories 10

Genuine accessories that can be used with the FESTO VL-5-1/2-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MF-LD-12-24DC	Illuminating seal · Electrical accessories
MF-LD-230AC	Illuminating seal · Electrical accessories
U-1/2	Silencer · Silencer
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
QS-G1/2-12	Push-in fitting · Fittings
QS-G1/2-12-I	Push-in fitting · Fittings
QSL-G1/2-12	Push-in L-fitting · Fittings
