How can I get a price quote for Festo VHER-P-H-B43E-B-M5?

You can request a fast quote for Festo VHER-P-H-B43E-B-M5 from Yılsa Engineering. Reference part number YLS1JPINPWAAH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VHER-P-H-B43E-B-M5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VHER-P-H-B43E-B-M5 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VHER-P-H-B43E-B-M5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

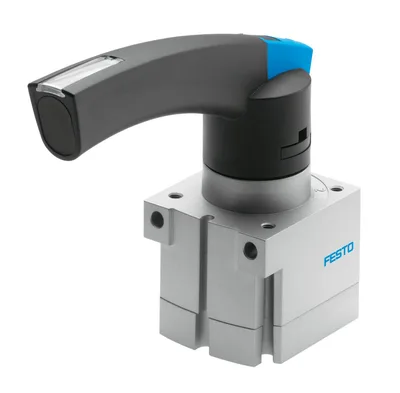

Festo VHER-P-H-B43E-B-M5

Hand lever valve. Lever in metal or polymer design. Front panel mounting, through holes or mounting holes

FestoMFR # VHER-P-H-B43E-B-M5SKU # YLS1JPINPWAAH

Valve function4/3 exhausted

Type of actuationManual

Construction width30

pneumatic working portM5

Operating pressure0, 10

DesignRotary switching valve

Have questions?Chat on WhatsApp

About This Product

Hand lever valve. Lever in metal or polymer design. Front panel mounting, through holes or mounting holes

Festo VHER-P-H-B43E-B-M5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function4/3 exhausted

Type of actuationManual

Construction width30

Standard nominal flow rate (standardised to DIN 1343)260

pneumatic working portM5

Operating pressure0, 10

Note on operating pressureIn the case of dual-pressure operation, the pressure at port 1 must be higher than at port 3.

DesignRotary switching valve

Nominal size4

Exhaust-air functionCan be throttled

Instructions on useActuate manually only

Actuator lockcan be closed with accessories

Sealing principleHard

Type of pilotingDirect

Flow directionNon-reversible

Symbol00995945

OverlapYes

Switching position indicatorWith accessories

Explosion protectionZone 2 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-20, 80

Ambient temperature-20, 80

Actuating torque0.5

Product weight80

Type of mountingWith through-hole

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Pneumatic connection, port 3M5

Pneumatic connection, port 4M5

Note on materialsRoHS compliant

Material sealsNBR

Material housingPA

Material leverProcess automation

Accessories 29

Genuine accessories that can be used with the Festo VHER-P-H-B43E-B-M5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-SW	Plastic tubing · Tubes
B-M5	Blanking plug · Fittings
PUN-H-6X1-TBL	Plastic tubing · Tubes
QSM-M5-6	Push-in fitting · Fittings
QSM-M5-6-I	Push-in fitting · Fittings
QSML-M5-6	Push-in L-fitting · Fittings
B-M5-100	Blanking plug · Fittings
AMTE-M-LH-M5	Silencer · Silencer
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
SME-10-KL-LED-24	Proximity sensor · Proximity sensors
SME-10-SL-LED-24	Proximity sensor · Proximity sensors
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-4	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
SME-10-KQ-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10-SQ-LED-24	Proximity sensor · Cylinder sensors for direct mounting
AMTE-M-H-M5	Silencer · Silencer
B-M5-F1A	Blanking plug · Other connectors
