How can I get a price quote for FESTO VASB-75-1/4-SI-B?

You can request a fast quote for FESTO VASB-75-1/4-SI-B from Yılsa Engineering. Reference part number CEY-937FC781B526. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VASB-75-1/4-SI-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VASB-75-1/4-SI-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VASB-75-1/4-SI-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

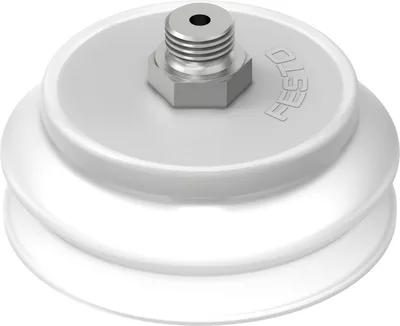

FESTO VASB-75-1/4-SI-B

Suction cup with connection. Sturdy and reliable. Suction cups with fixed connecting thread. 11 suction cup diameters. Round suction cup, bellows. Vacuum connection on top, on side. Screw-in thread. Variants suitable for battery production according to F1A

FESTOMFR # VASB-75-1/4-SI-BSKU # CEY-937FC781B526

Height compensator for suction cup15.5

Nominal size4

Suction cup diameter75

Suction cup volume65.5

Effective suction diameter64.4

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO VASB-75-1/4-SI-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup15.5

Nominal size4

Suction cup diameter75

Suction cup volume65.5

Effective suction diameter64.4

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound protective bellows 1.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature-40, 200

Holding force at nominal operating pressure228

Product weight78

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourTransparent

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVMQ (silicone)

Accessories 13

Genuine accessories that can be used with the FESTO VASB-75-1/4-SI-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AD-M12X1,25-1/4	Adapter · Mounting accessories
AD-M10X1,25-1/4	Adapter · Mounting accessories
AD-G1/4-1/4NPT-I	Adapter · Mounting accessories
AD-1/4NPT-G1/4-I	Adapter · Mounting accessories
VAF-PK-4	Vacuum filter · General accessories
LJK-1/4-I/I	Elbow fitting · Mounting accessories
AD-M6-1/4	Adapter · Mounting accessories
AD-M8-1/4	Adapter · Mounting accessories
VAF-PK-6	Vacuum filter · General accessories
VAF-PK-3	Vacuum filter · General accessories
VAF-DB-1/4	Vacuum filter · General accessories
VAF-DB-3/8	Vacuum filter · General accessories
VAF-DB-1/2	Vacuum filter · General accessories
