How can I get a price quote for FESTO VAS-75-1/4-NBR?

You can request a fast quote for FESTO VAS-75-1/4-NBR from Yılsa Engineering. Reference part number CEY-937FC7826456. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VAS-75-1/4-NBR in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VAS-75-1/4-NBR genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VAS-75-1/4-NBR?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

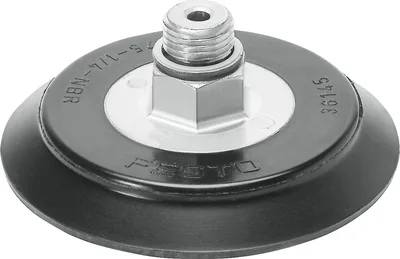

FESTO VAS-75-1/4-NBR

Suction cup with connection. Sturdy and reliable. Suction cups with fixed connecting thread. 11 suction cup diameters. Round suction cup, bellows. Vacuum connection on top, on side. Screw-in thread. Variants suitable for battery production according to F1A

FESTOMFR # VAS-75-1/4-NBRSKU # CEY-937FC7826456

Height compensator for suction cup3.5

Nominal size4

Suction cup diameter75

Suction cup volume8.01

Effective suction diameter60

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO VAS-75-1/4-NBR

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup3.5

Nominal size4

Suction cup diameter75

Suction cup volume8.01

Effective suction diameter60

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-20, 80

Holding force at nominal operating pressure197

Product weight76

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourBlack

Shore hardness70 +/- 5

Material screwed plugDie-cast zinc

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 28

Genuine accessories that can be used with the FESTO VAS-75-1/4-NBR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AD-M10X1,25-1/4	Adapter · Mounting accessories
AD-M12X1,25-1/4	Adapter · Mounting accessories
ACK-1/4-PK-6	Quick connector · Quick connectors
ACK-1/4-PK-4	Quick connector · Quick connectors
AD-G1/4-1/4NPT-I	Adapter · Mounting accessories
QCK-1/4-PK-6-B	Bulkhead quick connector · Quick connectors
AD-1/4NPT-G1/4-I	Adapter · Mounting accessories
VAF-PK-4	Vacuum filter · General accessories
QSF-1/4-6-B-100	Push-in fitting · Push-in fittings
QSF-1/4-8-B-50	Push-in fitting · Push-in fittings
QSF-1/4-10-B-50	Push-in fitting · Push-in fittings
LJK-1/4-I/I	Elbow fitting · Mounting accessories
QSF-1/4-6-B	Push-in fitting · Push-in fittings
QSF-1/4-8-B	Push-in fitting · Push-in fittings
QSF-1/4-10-B	Push-in fitting · Push-in fittings
QSSF-1/4-6-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-8-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-10-B	Bulkhead push-in fitting · Push-in fittings
AD-M6-1/4	Adapter · Mounting accessories
AD-M8-1/4	Adapter · Mounting accessories
VAF-PK-6	Vacuum filter · General accessories
QSF-1/4-4-B	Push-in fitting · Push-in fittings
QSF-1/4-12-B	Push-in fitting · Push-in fittings
QSSF-1/4-4-B	Bulkhead push-in fitting · Push-in fittings
VAF-PK-3	Vacuum filter · General accessories
VAF-DB-1/4	Vacuum filter · General accessories
VAF-DB-3/8	Vacuum filter · General accessories
VAF-DB-1/2	Vacuum filter · General accessories
