How can I get a price quote for FESTO VAS-40-1/4-SI-B?

You can request a fast quote for FESTO VAS-40-1/4-SI-B from Yılsa Engineering. Reference part number CEY-937FC781B523. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VAS-40-1/4-SI-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VAS-40-1/4-SI-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VAS-40-1/4-SI-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

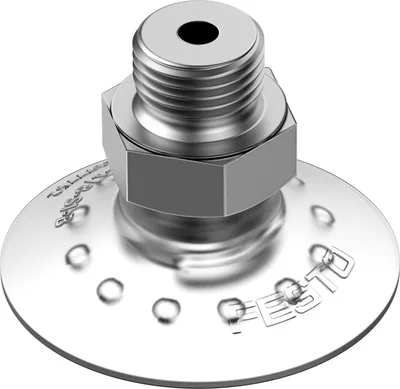

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VAS-40-1/4-SI-B

Suction cup with connection. Sturdy and reliable. Suction cups with fixed connecting thread. 11 suction cup diameters. Round suction cup, bellows. Vacuum connection on top, on side. Screw-in thread. Variants suitable for battery production according to F1A

FESTOMFR # VAS-40-1/4-SI-BSKU # CEY-937FC781B523

Height compensator for suction cup3

Nominal size4

Suction cup diameter40

Suction cup volume3.47

Effective suction diameter32.5

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO VAS-40-1/4-SI-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup3

Nominal size4

Suction cup diameter40

Suction cup volume3.47

Effective suction diameter32.5

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature-40, 200

Holding force at nominal operating pressure58

Product weight14

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourTransparent

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVMQ (silicone)

Accessories 28

Genuine accessories that can be used with the FESTO VAS-40-1/4-SI-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AD-M12X1,25-1/4	Adapter · Mounting accessories
AD-M10X1,25-1/4	Adapter · Mounting accessories
ACK-1/4-PK-6	Quick connector · Quick connectors
ACK-1/4-PK-4	Quick connector · Quick connectors
AD-G1/4-1/4NPT-I	Adapter · Mounting accessories
QCK-1/4-PK-6-B	Bulkhead quick connector · Quick connectors
AD-1/4NPT-G1/4-I	Adapter · Mounting accessories
VAF-PK-4	Vacuum filter · General accessories
QSF-1/4-6-B-100	Push-in fitting · Push-in fittings
QSF-1/4-8-B-50	Push-in fitting · Push-in fittings
QSF-1/4-10-B-50	Push-in fitting · Push-in fittings
LJK-1/4-I/I	Elbow fitting · Mounting accessories
QSF-1/4-6-B	Push-in fitting · Push-in fittings
QSF-1/4-8-B	Push-in fitting · Push-in fittings
QSF-1/4-10-B	Push-in fitting · Push-in fittings
QSSF-1/4-6-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-8-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/4-10-B	Bulkhead push-in fitting · Push-in fittings
AD-M6-1/4	Adapter · Mounting accessories
AD-M8-1/4	Adapter · Mounting accessories
VAF-PK-6	Vacuum filter · General accessories
QSF-1/4-4-B	Push-in fitting · Push-in fittings
QSF-1/4-12-B	Push-in fitting · Push-in fittings
QSSF-1/4-4-B	Bulkhead push-in fitting · Push-in fittings
VAF-PK-3	Vacuum filter · General accessories
VAF-DB-1/4	Vacuum filter · General accessories
VAF-DB-3/8	Vacuum filter · General accessories
VAF-DB-1/2	Vacuum filter · General accessories
