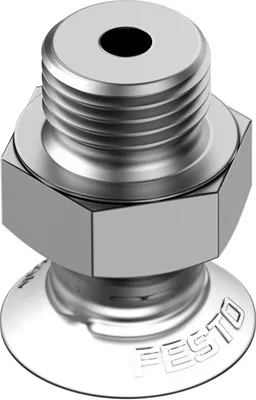

FESTO VAS-15-1/8-SI-B

Suction cup with connection. Sturdy and reliable. Suction cups with fixed connecting thread. 11 suction cup diameters. Round suction cup, bellows. Vacuum connection on top, on side. Screw-in thread. Variants suitable for battery production according to F1A

FESTOMFR # VAS-15-1/8-SI-BSKU # CEY-937FC781B6DE

Height compensator for suction cup1.2

Nominal size3

Suction cup diameter15

Suction cup volume0.328

Effective suction diameter12.4

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO VAS-15-1/8-SI-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup1.2

Nominal size3

Suction cup diameter15

Suction cup volume0.328

Effective suction diameter12.4

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature-40, 200

Holding force at nominal operating pressure8.5

Product weight4

Type of mountingVia vacuum port

Vacuum connectionG1/8

ColourTransparent

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVMQ (silicone)

Accessories 21

Genuine accessories that can be used with the FESTO VAS-15-1/8-SI-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AD-M8-1/8	Adapter · Mounting accessories
AD-M10X1,25-1/8	Adapter · Mounting accessories
ACK-1/8-PK-4	Quick connector · Quick connectors
ACK-1/8-PK-3	Quick connector · Quick connectors
ACK-1/8-PK-6	Quick connector · Quick connectors
QCK-1/8-PK-4-B	Bulkhead quick connector · Quick connectors
VAF-PK-4	Vacuum filter · General accessories
QSF-1/8-4-B-100	Push-in fitting · Push-in fittings
QSF-1/8-6-B-100	Push-in fitting · Push-in fittings
QSF-1/8-8-B-50	Push-in fitting · Push-in fittings
QSF-1/8-4-B	Push-in fitting · Push-in fittings
QSF-1/8-6-B	Push-in fitting · Push-in fittings
QSF-1/8-8-B	Push-in fitting · Push-in fittings
QSSF-1/8-4-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/8-6-B	Bulkhead push-in fitting · Push-in fittings
QSSF-1/8-8-B	Bulkhead push-in fitting · Push-in fittings
VAF-PK-6	Vacuum filter · General accessories
VAF-PK-3	Vacuum filter · General accessories
VAF-DB-1/4	Vacuum filter · General accessories
VAF-DB-3/8	Vacuum filter · General accessories
VAF-DB-1/2	Vacuum filter · General accessories
