How can I get a price quote for Festo VADMI-70?

You can request a fast quote for Festo VADMI-70 from Yılsa Engineering. Reference part number CEY-937FC7824D45. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VADMI-70 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VADMI-70 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VADMI-70?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

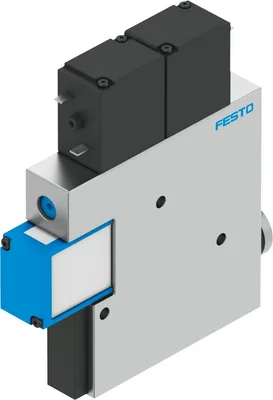

Festo VADMI-70

Vacuum generator. Compact and sturdy design. Built-in solenoid valve (on/off). Integrated filter with inspection window. Available with air-saving function, vacuum sensor. Optionally with adjustable ejector pulse. Compact vacuum generation and monitoring in a single unit

FestoMFR # VADMI-70SKU # CEY-937FC7824D45

Nominal size, Laval nozzle0.7

Grid dimension15

Silencer designClosed

Mounting positionAny

Ejector characteristicHigh vacuum

Grade of filtration40

Have questions?Chat on WhatsApp

About This Product

Festo VADMI-70

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.7

Grid dimension15

Silencer designClosed

Mounting positionAny

Ejector characteristicHigh vacuum

Grade of filtration40

Manual overrideNon-detenting

Integrated functionEjector pulse valve, electric, Flow control, On/off valve, electric, Filter, Check valve

Symbol00991305

Valve functionClosed

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Max. vacuum85

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Air supply time at nominal operating pressure with ejector pulse0.59

Operational voltage range DC21.6, 26.4

Duty cycle100%

Approvalc UL us - Recognised (Oil)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 60

Degree of protectionIP65

Ambient temperature0, 60

Product weight170

Electrical connectionPlug

Type of mountingWith through-hole, With female thread

Pneumatic connection, port 1M5

Pneumatic connection, port 3Integrated silencer

Vacuum connectionG1/8

Note on materialsRoHS compliant

Material sealsNBR

Material receiver nozzleNickel-plated brass

Material filterProcess automation

Material filter housingMakrolon®

Material housingWrought aluminium alloy

Material silencerPackaging unit, POM

Material pistonPOM

Material transmitter nozzleNickel-plated brass

Accessories 20

Genuine accessories that can be used with the Festo VADMI-70 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-TBL	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
MSSD-ZBZC	Plug socket · Electrical accessories
QSM-M5-6	Push-in fitting · Fittings
QSM-M5-6-I	Push-in fitting · Fittings
QSML-M5-6	Push-in L-fitting · Fittings
QS-G1/8-8	Push-in fitting · Fittings
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
KMYZ-2-24-M8-2,5-LED	Connecting cable · Connecting cables
KMYZ-2-24-2,5-LED	Connecting cable · Connecting cables
KMYZ-2-24-5-LED	Connecting cable · Connecting cables
KMYZ-2-24-M8-0,5-LED	Connecting cable · Connecting cables
KMYZ-2-24-10-LED	Connecting cable · Connecting cables
