How can I get a price quote for Festo VABA-S6-1-X5-F4?

You can request a fast quote for Festo VABA-S6-1-X5-F4 from Yılsa Engineering. Reference part number YLSERYJOO9B6POV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VABA-S6-1-X5-F4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VABA-S6-1-X5-F4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VABA-S6-1-X5-F4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

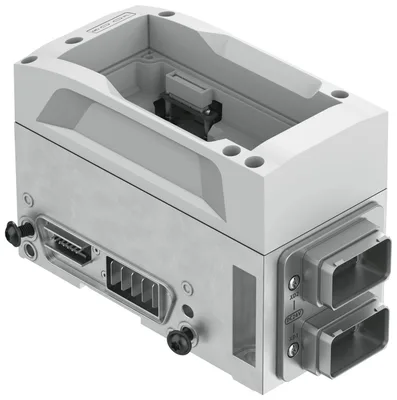

Festo VABA-S6-1-X5-F4

Pneumatic interface

FestoMFR # VABA-S6-1-X5-F4SKU # YLSERYJOO9B6POV

Note on vibration resistanceSG2 on wall mounting

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 44, VTSA, Type 45, VTSA-F

Reverse polarity protectionYes

Max. number of valve coils32

Module code (hex/dec)0x3045/12357d

Have questions?Chat on WhatsApp

About This Product

Festo VABA-S6-1-X5-F4 (Pneumatic interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VABA-S6-1-X5-F4 — price, stock availability and technical specifications.

Festo VABA-S6-1-X5-F4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG2 on wall mounting

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistanceSG2 on wall mounting

Valve terminal interfaceType 44, VTSA, Type 45, VTSA-F

Reverse polarity protectionYes

Diagnostics via LEDDiagnostics per module, Load power supply

Diagnostics per internal communicationCommunication error, Short-circuit/overload in output signal, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Max. number of valve positions16 with double solenoid valves, 32 with single solenoid valves

Max. number of valve coils32

Module code (hex/dec)0x3045/12357d

Module parametersActivation of diagnostics in case of overload/short circuit, Condition counter limit value/actual value, Configuration of voltage monitoring load supply PL, Behaviour in error state

Internal cycle time< 1 ms

Dimensions (W x L x H)70.5 mm x 160.65 mm x 102.6 mm

Fuse protection (short circuit)Internal electronic fuse protection per valve output

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypical 27 mA

Intrinsic current consumption at nominal operating voltage loadTypical 17 mA

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Max. power supply2 x 16 A (external fuse required)

Nominal DC operating voltage, electronics/sensors24

Nominal operating voltage DC of load24

Nominal current16

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Pollution degree2

Permissible voltage fluctuations for electronics/sensors±25%

Permissible voltage fluctuation of load±10%

Power supply, functionIncoming electronics/sensors and load and functional earth

Power supply, connection typePlug

power supply, connection systemPush-pull to IEC 61076-3-126

Power supply, number of pins/wires5

Power supply, connection pattern00997378

Power transmission, functionOutgoing electronics/sensors and load and functional earth

Power transmission, connection typeSocket

Power transmission, connection technologyPush-pull to IEC 61076-3-126

Power transmission, number of pins/wires5

Power transmission, plug pattern00997378

Undervoltage load/valves (diagnostic message)21.6

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Protection classIII

Overvoltage categoryII

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation height> 2000 m ASL (< 79.5 kPa), Observe ambient temperature derating according to IEC 61131-2:2017

Product weight1328

Electrical controlFieldbus

Communication interface, protocolAP

Type of mountingVia through-hole for M6 screw

Note on materialsFree of halogen, Free of phosphoric acid ester

Material coverZinc die-cast metal, powder-coated

Material sealsNBR, PUR

Material flangeNickel-plated die-cast zinc

Material housingAluminium

Material screwsNickel-plated steel

Accessories 6

Genuine accessories that can be used with the Festo VABA-S6-1-X5-F4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECU-M-PPG5PP-C1-PN	Power supply socket · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEAU-KD-P4-A1-P5	Cable seal · Electrical accessories
