How can I get a price quote for Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R?

You can request a fast quote for Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R from Yılsa Engineering. Reference part number YLSBJ0CPEUSZ7TD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

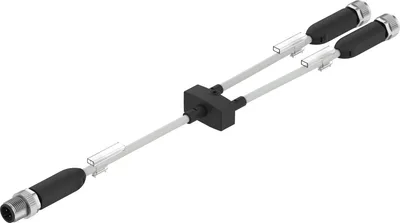

Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R

Distributor. Collecting signals between field devices (sensors) and double-assigned controller inputs. Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)

FestoMFR # NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5RSKU # YLSBJ0CPEUSZ7TD

Based on standardEN 61076-2-101

DesignY-distributor with cables on both sides

Distrubution2 to 1

Cable designationWith inscription label holder

Product weight187

Electrical connection 1, functionControl side

Have questions?Chat on WhatsApp

About This Product

Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-101

DesignY-distributor with cables on both sides

Distrubution2 to 1

Cable designationWith inscription label holder

Type of mountingVia through-hole for M2 screw, With accessories

Product weight187

Electrical connection 1, functionControl side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995386

Electrical connection 2, functionField device side

Electrical connection 2, designRound

Electrical connection 2, connection type2x socket

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores4

electrical connection 2, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 2, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 2, connection pattern00991861

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C4

Immunity to surge0.8

Cable length 15

Cable length 20.3

Cable characteristicSuitable for energy chains/robot applications

Test conditions cableBending strength: to Festo standard, Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Min. bending radius with free moving insert 146

Min. bending radius with free moving insert 246

Cable diameter 14.5

Cable diameter 24.5

Nominal cross section conductor0.25

Degree of protectionIP65, IP68, IP69K

Ambient temperature-25, 80

Note on ambient temperature-10 - 40°C with mounting via through-hole

Ambient temperature with moving cable-20, 80

Storage temperature-25, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material union nutDie-cast zinc

Material sealsFluoro rubber

Material electrical contactGold-plated copper alloy

Material threaded sleeveDie-cast zinc

Accessories 1

Genuine accessories that can be used with the Festo NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
