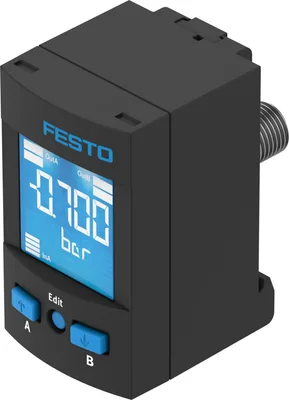

Festo SPAU-

Pressure sensor. For monitoring compressed air and non-corrosive gases. With or without display. Transfer of the pressure value as switching signal, analogue signal or via IO-Link® to the connected control system. Maximum versatility thanks to a wide range of pneumatic adaptations and switchable electrical outputs. Sustainable operation thanks to pressure monitoring

FestoMFR # SPAU-SKU # YLSENZO65GGTB

Symbol00995410, 00995411, 00995412

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Have questions?Chat on WhatsApp

About This Product

Festo SPAU-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00995410, 00995411, 00995412

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

Note on materialsRoHS compliant

Measured variableRelative pressure

Measurement methodPiezoresistive pressure sensor

Start value for pressure measuring range-0.1

Start value for pressure measuring range-1

Start value for pressure measuring range-14.5

End value for pressure measuring range1.6

End value for pressure measuring range16

End value for pressure measuring range232

Overload pressure2

Overload pressure20

Overload pressure290

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible

Media temperature0, 50

Ambient temperature0, 50

Resolution ADC12

Accuracy in ± % FS1.5

Repetition accuracy in ± %FS0.3

Temperature coefficient in ± %FS/K0.05

Switching output2 x PNP or 2 x NPN, switchable, 2xPNP

Switching functionFreely programmable

Switching element functionNC or NO, switchable

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Rise time3

Max. load resistance current output500

Min. load resistance voltage output10

Short circuit current ratingYes

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring)

IO-Link, Min. cycle time3 ms

IO-Link, Data storage required500

Operational voltage range DC20, 30

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101, M8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

Electrical connection 1, connection pattern00991171, 00995386

Type of mountingEither:, Front panel mounting, On service unit, With thread, via DIN rail, Via wall/surface bracket

Mounting positionAny

Pneumatic connectionM5, M7, G1/8, R1/8, R1/4, 1/8 NPT, QS-4, QS-6, QS-5/32

Product weight40, 80

Material in contact with the mediumHigh-alloy stainless steel

Display typeIlluminated LCD, LED

Displayable unitsMPa, bar, inH2O, inHg, kPa, kgf/cm², mmHg, psi

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Setting range threshold value0, 100

Setting range hysteresis0, 90

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L
