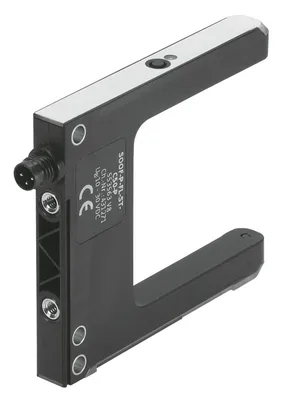

FESTO SOOF-P-FL-ST-C50-N

Fork light barrier. Through-beam sensor with minimal installation effort. Design: polymer or metal. Sturdy housing: high shock and vibration resistance. Degree of protection IP67. Electrical connection via M8x1 plug connector, 3-pin. LED indicators

FESTOMFR # SOOF-P-FL-ST-C50-NSKU # CEY-937FC781E10F

Symbol00991640

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodFork light barrier

Have questions?Chat on WhatsApp

About This Product

FESTO SOOF-P-FL-ST-C50-N

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00991640

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodFork light barrier

Type of lightRed

Min. object diameter0.3

Ambient temperature-10, 60

Repetition accuracy0.03

Switching outputNPN

Switching element functionSwitchable

Hysteresis0.25

Max. switching frequency2000

Max. output current100

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current30

Reverse polarity protectionFor operating voltage connections

Electrical connectionM8x1, Plug

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

SizeClevis 50x55 mm

Fork gap50

Product weight30

Material housingMakrolon®

Switching status indicationYellow LED

Setting optionsTeach-in

Degree of protectionIP67

Insulation voltage500

Immunity to surge0.8

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Pollution degree3

Accessories 15

Genuine accessories that can be used with the FESTO SOOF-P-FL-ST-C50-N motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SAMH-G3-Q	Mounting · Mounting accessories
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
ASLR-L-423	Inscription label · General accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
