How can I get a price quote for FESTO SOOF-M-FL-SM-C120-P?

You can request a fast quote for FESTO SOOF-M-FL-SM-C120-P from Yılsa Engineering. Reference part number CEY-937FC781E113. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SOOF-M-FL-SM-C120-P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SOOF-M-FL-SM-C120-P genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SOOF-M-FL-SM-C120-P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

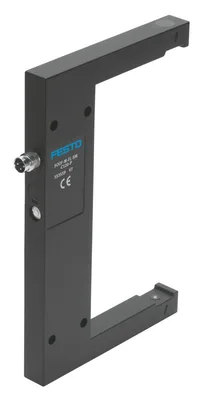

FESTO SOOF-M-FL-SM-C120-P

Fork light barrier. Through-beam sensor with minimal installation effort. Design: polymer or metal. Sturdy housing: high shock and vibration resistance. Degree of protection IP67. Electrical connection via M8x1 plug connector, 3-pin. LED indicators

FESTOMFR # SOOF-M-FL-SM-C120-PSKU # CEY-937FC781E113

Symbol00995956

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodFork light barrier

Have questions?Chat on WhatsApp

About This Product

FESTO SOOF-M-FL-SM-C120-P

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00995956

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodFork light barrier

Type of lightRed

Min. object diameter0.5

Note on min. object diameter0.5 mm with standard mode, 0.3 mm with high resolution mode, 1.5 mm with power mode, 0.5 mm with speed mode

Ambient temperature-25, 60

Repetition accuracy0.02

Switching outputPush-pull, NPN, PNP

Switching element functionSwitchable

Hysteresis0.1

Max. switching frequency5000

Note on switching frequency5000 Hz with standard mode, 1500 Hz with high resolution mode, 250 Hz with power mode, 8000 Hz with speed mode

Max. output current100

Timer functionVia IO-Link®

Short circuit current ratingPulsed

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT0 bytes

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN1 bit BDC (stability), 1 bit SSC (switching signal), 12 bit PDV (signal level)

IO-Link, Service data IN16 bit maximum signal level, 16 bit minimum signal level, 16 bit temperature, 32 bit-switching counter, 8 bit teach-in quality

IO-Link, Min. cycle time2.3 ms

IO-Link, Data storage required73

Operational voltage range DC10, 30

Residual ripple±5%

No-load supply current30

Reverse polarity protectionFor all electrical connections

Electrical connectionM8x1, Plug

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with latching lock, Compatible with rotatable screw-type lock

SizeClevis 120x60 mm

Fork gap120

Product weight244

Material housingDie-cast zinc, coated

Switching status indicationYellow LED

Setting optionsIO-Link®, Poti

Degree of protectionIP67

Insulation voltage500

Immunity to surge0.8

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Pollution degree3

Accessories 14

Genuine accessories that can be used with the FESTO SOOF-M-FL-SM-C120-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
ASLR-L-423	Inscription label · General accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M8G3-U-0.3L-M8G4-5R	Distributor · Electrical accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
