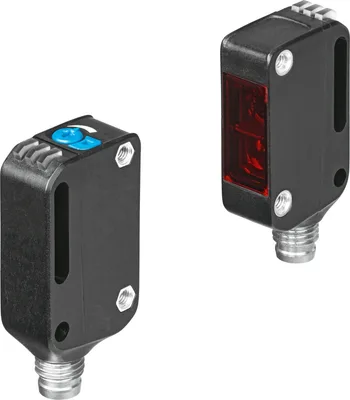

Festo SOOE-TB-L-PNLK-T

Light barrier. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

FestoMFR # SOOE-TB-L-PNLK-TSKU # YLSOY7S7QEZKA3G

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995973

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Have questions?Chat on WhatsApp

About This Product

Light barrier. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

Festo SOOE-TB-L-PNLK-T

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995973

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Measuring principleOptoelectronic

Detection methodThrough-beam sensor, Transmitter, Receiver

Type of lightLaser, Red

Max. light spot50 mm with 20000 mm

Operating distance0, 20000

Ambient temperature-40, 60

Switching outputPush-pull

Switching element functionSwitchable, PNP dark switching, NPN light switching

Max. switching frequency1250

Max. output current100

Voltage drop0, 1.5

Timer functionVia IO-Link®

Short circuit current ratingPulsed

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT1 bit (Emitter), 2 bit (Receiver)

IO-Link, Process data content OUT1 bit (emitter disable), 1 bit (Hold)

IO-Link, Process data length IN2 bit (Receiver)

IO-Link, Process data content IN1 bit (Stability Alarm), 1 bit SSC (Switching Signal)

IO-Link, Min. cycle time2.3 ms

IO-Link, Data storage required2000

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current14

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00991155

Material electrical contactGold-plated brass

Type of mountingVia through-hole for M3 screw

Tightening torque0.8

Mounting positionAny

Product weight20

Material housingMakrolon®, PLEXIGLAS®

Ready status indicationGreen LED

Switching status indicationYellow LED

Function reserve indicationFlashing yellow LED

Setting optionsIO-Link®, Poti, Teach-in

Degree of protectionIP65, IP67, IP69K

Insulation voltage500

Immunity to surge1

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Laser safety class1

Pollution degree3

Accessories 30

Genuine accessories that can be used with the Festo SOOE-TB-L-PNLK-T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SAMH-L3-A	Mounting bracket · Mounting accessories
SAMH-L3-L-A	Mounting bracket · Mounting accessories
NEBA-	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-20-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-M8G3	Connecting cable · Connecting cables
