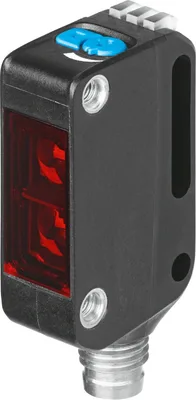

Festo SOOE-BS-L-PNLK-T

Diffuse sensor. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

FestoMFR # SOOE-BS-L-PNLK-TSKU # YLSLAZULJQ2YAQ

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995956

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Have questions?Chat on WhatsApp

About This Product

Diffuse sensor. Simple operation. Fast commissioning. Reliable and stable detection. Attractive price/performance ratio

Festo SOOE-BS-L-PNLK-T

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Conforms to standardEN 60947-5-2

Symbol00995956

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E232949

Note on materialsRoHS compliant

Measuring principleOptoelectronic

Detection methodDiffuse sensor with background clipping

Type of lightLaser, Red

Max. light spot1 mm at a sensing range of 200 mm

Min. object diameter2

Operating distance7, 300

Ambient temperature-40, 60

Max. black-white difference45

Reference materialStandard white 90%, 100x100 mm

Switching outputPush-pull

Switching element functionSwitchable, PNP light switching, NPN dark switching

Hysteresis18

Max. switching frequency1650

Max. output current100

Voltage drop0, 1.5

Timer functionVia IO-Link®

Short circuit current ratingPulsed

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesProcess data variable (PDV), Identification, Diagnostics, Teach channel, Switching signal channel (SSC)

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length OUT2 bit

IO-Link, Process data content OUT1 bit (emitter disable), 1 bit (Hold)

IO-Link, Process data length IN1 bit

IO-Link, Process data content IN1 bit SSC (Switching Signal)

IO-Link, Min. cycle time2.3 ms

IO-Link, Data storage required2000

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current25

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores3

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00991155

Material electrical contactGold-plated brass

Type of mountingVia through-hole for M3 screw

Tightening torque0.8

Mounting positionAny

Product weight10

Material housingMakrolon®, PLEXIGLAS®

Ready status indicationGreen LED

Switching status indicationYellow LED

Setting optionsIO-Link®, Poti, Teach-in

Setting range lower limit25

Setting range upper limit300

Degree of protectionIP65, IP67, IP69K

Insulation voltage500

Immunity to surge1

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Laser safety class1

Pollution degree3

Accessories 30

Genuine accessories that can be used with the Festo SOOE-BS-L-PNLK-T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SAMH-L3-A	Mounting bracket · Mounting accessories
SAMH-L3-L-A	Mounting bracket · Mounting accessories
NEBA-	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-20-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-M8G3	Connecting cable · Connecting cables
