How can I get a price quote for FESTO SOEG-RT-M12-NS-K-2L?

You can request a fast quote for FESTO SOEG-RT-M12-NS-K-2L from Yılsa Engineering. Reference part number CEY-937FC781EBC8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SOEG-RT-M12-NS-K-2L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SOEG-RT-M12-NS-K-2L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SOEG-RT-M12-NS-K-2L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

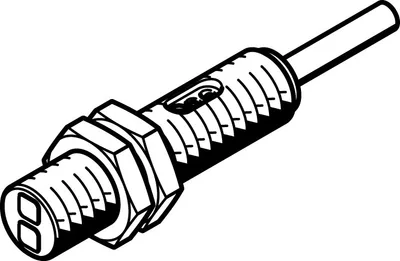

FESTO SOEG-RT-M12-NS-K-2L

Diffuse sensor. Round design. Electrical connection via open cable end or plug connector

FESTOMFR # SOEG-RT-M12-NS-K-2LSKU # CEY-937FC781EBC8

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991639

ApprovalRCM, c UL us - Listed (Oil)

Measured variablePosition

Measuring principleOptoelectronic

Have questions?Chat on WhatsApp

About This Product

Diffuse sensor. Round design. Electrical connection via open cable end or plug connector

FESTO SOEG-RT-M12-NS-K-2L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991639

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodDiffuse sensor

Type of lightRed

Operating distance70, 300

Ambient temperature-25, 55

Switching outputNPN

Switching element functionLight switching

Hysteresis30

Max. switching frequency1000

Max. output current200

Voltage drop2

Short circuit current ratingPulsed

Operational voltage range DC10, 36

Residual ripple20%

No-load supply current15

Reverse polarity protectionFor all electrical connections

Electrical connectionCable

Cable length2.5

Material cable sheathTPE-U(PUR)

Material insulating sheathPVC

SizeM12

Type of mountingVia lock nut

Tightening torque10

Mounting positionAny

Product weight100

Material housingChrome-plated

Switching status indicationYellow LED

Function reserve indicationGreen LED

Setting optionsPoti

Setting range lower limit70

Setting range upper limit300

Ambient temperature with moving cable-5, 55

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Accessories 8

Genuine accessories that can be used with the FESTO SOEG-RT-M12-NS-K-2L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIEZ-NB-12	Sensor bracket · Retainer for proximity sensor
SIEZ-B-12	Sensor bracket · Retainer for proximity sensor
HBN-8/10X1	Foot mounting · Mounting accessories
NECB-S-M12G5-C2	Plug · Electrical accessories
NEAU-LH-4	Inscription label holder · General accessories
NECB-S-M12G4-C2	Plug · Electrical accessories
NECB-S-M12G4-C2-D	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
