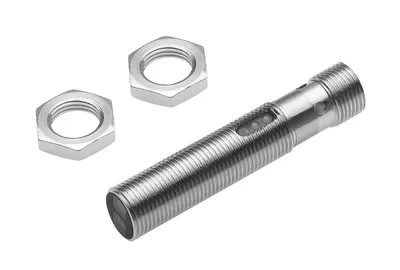

FESTO SOEG-RSP-M12-NS-S-2L

Retro-reflective sensor. Round design. Electrical connection via open cable end or plug connector

FESTOMFR # SOEG-RSP-M12-NS-S-2LSKU # CEY-937FC7820044

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991640

ApprovalRCM, c UL us - Listed (Oil)

Measured variablePosition

Measuring principleOptoelectronic

Have questions?Chat on WhatsApp

About This Product

Retro-reflective sensor. Round design. Electrical connection via open cable end or plug connector

FESTO SOEG-RSP-M12-NS-S-2L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardEN 60947-5-2

Symbol00991640

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Measured variablePosition

Measuring principleOptoelectronic

Measurement methodRetro-reflective sensor

Type of lightRed polarised

Operating distance1500

Ambient temperature-25, 55

Switching outputNPN

Switching element functionDark switching

Max. switching frequency1000

Max. output current200

Voltage drop2

Short circuit current ratingPulsed

Operational voltage range DC10, 36

Residual ripple20%

No-load supply current15

Reverse polarity protectionFor all electrical connections

Electrical connectionM12x1, Plug

SizeM12x1

Type of mountingVia lock nut

Tightening torque10

Product weight20

Material housingChrome-plated

Material union nutBrass, Chrome-plated

Switching status indicationYellow LED

Function reserve indicationGreen LED

Ambient temperature with moving cable-5, 55

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Accessories 10

Genuine accessories that can be used with the FESTO SOEG-RSP-M12-NS-S-2L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIEZ-NB-12	Sensor bracket · Retainer for proximity sensor
SIEZ-B-12	Sensor bracket · Retainer for proximity sensor
HBN-8/10X1	Foot mounting · Mounting accessories
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
