How can I get a price quote for FESTO SMEO-4U-K-LED 230?

You can request a fast quote for FESTO SMEO-4U-K-LED 230 from Yılsa Engineering. Reference part number CEY-937FC78205C0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SMEO-4U-K-LED 230 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SMEO-4U-K-LED 230 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SMEO-4U-K-LED 230?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

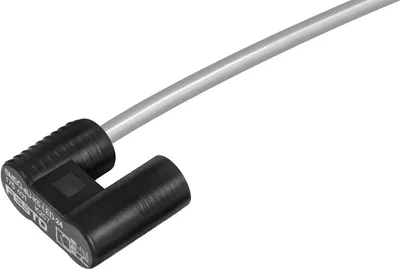

FESTO SMEO-4U-K-LED 230

Proximity sensor. Measuring principle: magnetic reed. LED switching status indication. Cable length 2.5, 5 m

FESTOMFR # SMEO-4U-K-LED 230SKU # CEY-937FC78205C0

DesignRound

Conforms to standardDIN EN 60947-5-2

Symbol00992153

ApprovalRCM

Measuring principleMagnetic reed

Ambient temperature-20, 60

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. LED switching status indication. Cable length 2.5, 5 m

FESTO SMEO-4U-K-LED 230

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRound

Conforms to standardDIN EN 60947-5-2

Symbol00992153

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Measuring principleMagnetic reed

Ambient temperature-20, 60

Repetition accuracy0.2

Switching outputContacting, bipolar, Without LED function

Switching element functionN/O contact

Switch-on time2

Switch-off time0.05

Max. switching frequency500

Max. output current AC250

Max. output current DC120

Max. switching capacity AC10

Max. switching capacity DC10

Voltage drop4.5

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC12, 250

Operational voltage range DC12, 250

Reverse polarity protectionNo

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores2

Connection outlet orientationIn-line

Cable length2.5

Material cable sheathPVC

Type of mountingWith accessories

Tightening torque0.8

Mounting positionAny

Product weight70

Material housingPET, TPE-O

Switching status indicationYellow LED

Degree of protectionIP67

Immunity to surge4

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 2

Genuine accessories that can be used with the FESTO SMEO-4U-K-LED 230 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
