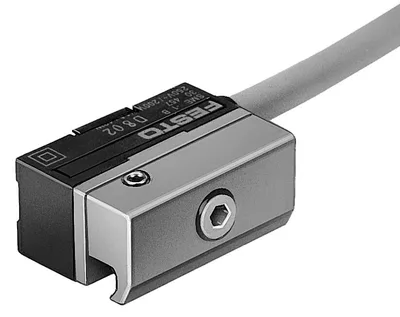

Festo SME-1-B

Proximity sensor. Measuring principle: magnetic reed. For mounting kit. With or without LED switching status indication

FestoMFR # SME-1-BSKU # CEY-937FC7825DA7

DesignBlock design

Conforms to standardDIN EN 60947-5-2

Symbol00991624

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Measuring principle: magnetic reed. For mounting kit. With or without LED switching status indication

Festo SME-1-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignBlock design

Conforms to standardDIN EN 60947-5-2

Symbol00991624

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Note on materialsRoHS compliant

Measured variablePosition

Measuring principleMagnetic reed

Ambient temperature-20, 70

Repetition accuracy0.2

Switching outputContacting, bipolar

Switching element functionN/O contact

Switch-on time0.5

Switch-off time0.03

Max. switching frequency500

Max. output current1000

Max. output current AC1000

Max. output current DC1000

Max. switching capacity AC40

Max. switching capacity DC40

Voltage drop0

Off-state current0

Short circuit current ratingNo

Overload protectionNot provided

Operational voltage range AC0, 250

Operational voltage range DC0, 200

Reverse polarity protectionNo

Electrical connection 1, connection typeCable

Electrical connection 1, connector systemOpen end

Electrical connection 1, number of connections/cores2

Connection outlet orientationIn-line

Cable length2.5

Cable sheath colourGrey

Material cable sheathPVC

Type of mountingWith accessories

Tightening torque2.9

Mounting positionAny

Product weight130

Housing colourBlack

Material housingMakrolon®, PET, Steel, TPE-O, Die-cast zinc

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

Insulation voltage250

Immunity to surge4

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3
