How can I get a price quote for Festo SIES-Q40B-PA-X-2L?

You can request a fast quote for Festo SIES-Q40B-PA-X-2L from Yılsa Engineering. Reference part number CEY-937FC7825D72. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SIES-Q40B-PA-X-2L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SIES-Q40B-PA-X-2L genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SIES-Q40B-PA-X-2L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

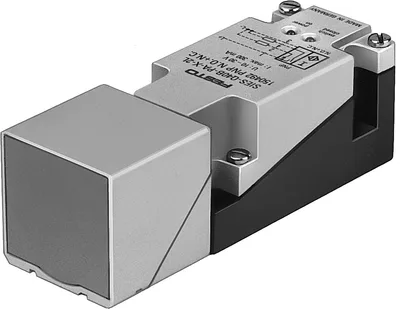

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo SIES-Q40B-PA-X-2L

Proximity sensor. Block design. Flush mounting. LED switching status indication

FestoMFR # SIES-Q40B-PA-X-2LSKU # CEY-937FC7825D72

Conforms to standardEN 60947-5-2

Symbol00991612

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive

Rated operating distance15

Assured operating distance12.2

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. Block design. Flush mounting. LED switching status indication

Festo SIES-Q40B-PA-X-2L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-2

Symbol00991612

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive

Rated operating distance15

Assured operating distance12.2

Reduction factorsAluminium = 0.3, Stainless steel St 18/8 = 0.7, Copper = 0.25, Brass = 0.3, Steel St 37 = 1.0

Ambient temperature-25, 85

Repetition accuracy0.75

Switching outputPNP

Switching element functionAntivalent

Max. switching frequency100

Max. switching frequency DC100

Max. output current as a function of temperature200 mA at <= 50 °C, 150 mA at <= 85 °C

Voltage drop3.5

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple10%

No-load supply current40

Reverse polarity protectionFor all electrical connections

Electrical connectionScrew terminal

Material connector housingProcess automation, PBT

Cable fittingM20x1.5

Permissible cable diameter7.5, 12.5

Size40x40x120 mm

Type of mountingWith through-hole

Mounting typeFlush

Product weight230

Material housingPET

Ready status indicationGreen LED

Switching status indicationYellow LED

Degree of protectionIP65

LABS (PWIS) conformityVDMA24364-B2-L

Additional information for sensor selectionSpecial design

Electrical outputPNP

Selection of sensor designStandard

Accessories 28

Genuine accessories that can be used with the Festo SIES-Q40B-PA-X-2L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-LE3	Connecting cable · Connecting cables
NEBA-	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-20-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-M8G3	Connecting cable · Connecting cables
