How can I get a price quote for Festo SIEN-M30NB-PS-S-L?

You can request a fast quote for Festo SIEN-M30NB-PS-S-L from Yılsa Engineering. Reference part number CEY-937FC7825DF2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SIEN-M30NB-PS-S-L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SIEN-M30NB-PS-S-L genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SIEN-M30NB-PS-S-L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

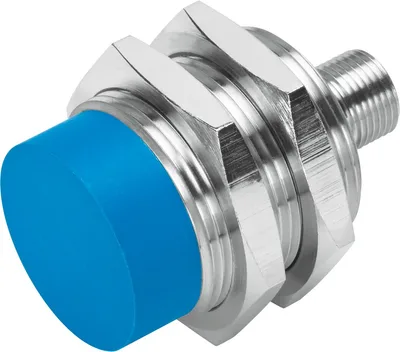

Festo SIEN-M30NB-PS-S-L

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FestoMFR # SIEN-M30NB-PS-S-LSKU # CEY-937FC7825DF2

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Rated operating distance15

Assured operating distance12.15

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

Festo SIEN-M30NB-PS-S-L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)

Note on materialsRoHS compliant

Rated operating distance15

Assured operating distance12.15

Reduction factorsAluminium = 0.5, Stainless steel St 18/8 = 0.85, Copper = 0.43, Brass = 0.53, Steel St 37 = 1.0

Ambient temperature-25, 70

Repetition accuracy0.75

Switching outputPNP

Switching element functionN/O contact

Hysteresis1.65

Max. switching frequency700

Max. output current200

Voltage drop2

Short circuit current ratingPulsed

Operational voltage range DC12, 30

Residual ripple+/-20%

No-load supply current10

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock

SizeM30x1.5

Type of mountingVia lock nut

Tightening torque40

Mounting typeNot flush

Product weight100

Material housingPBTP, Chrome-plated

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

Immunity to surge0.8

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Additional information for sensor selectionWith standards-based switching distance

Electrical outputPNP

Selection of sensor designStandard

Accessories 15

Genuine accessories that can be used with the Festo SIEN-M30NB-PS-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NECB-M12G4-C2	Socket · Electrical accessories
NECB-M12W4-C2	Socket · Electrical accessories
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NECB-M12G5-C2	Socket · Electrical accessories
NECB-M12W5-C2	Socket · Electrical accessories
FBN-32	Flange mounting · Mounting accessories
SIEZ-NB-30	Sensor bracket · Mounting kits for proximity sensors, other sensors
NEDY-	Distributor · Electrical accessories
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5P-U-5-N-LE3	Connecting cable · Connecting cables
