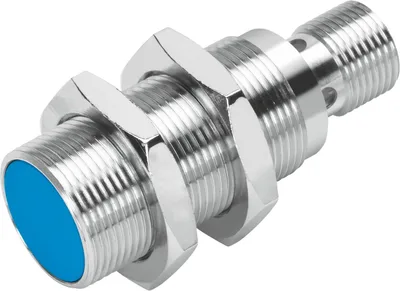

Festo SIEN-M18B-PS-S-L

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

FestoMFR # SIEN-M18B-PS-S-LSKU # CEY-937FC7825E0A

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Rated operating distance5

Assured operating distance4.05

Have questions?Chat on WhatsApp

About This Product

Proximity sensor. With standard switching distance. For DC voltage. Round design. Metric thread. Flush or non-flush mounting. LED switching status indication. Design with metal or polyamide housing

Festo SIEN-M18B-PS-S-L

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 60947-5-2

Symbol00991701

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)

Note on materialsRoHS compliant

Rated operating distance5

Assured operating distance4.05

Reduction factorsAluminium = 0.4, Stainless steel St 18/8 = 0.8, Copper = 0.4, Brass = 0.5, Steel St 37 = 1.0

Ambient temperature-25, 70

Repetition accuracy0.25

Switching outputPNP

Switching element functionN/O contact

Hysteresis0.55

Max. switching frequency2000

Max. output current200

Voltage drop2

Short circuit current ratingPulsed

Operational voltage range DC10, 30

Residual ripple+/-20%

No-load supply current10

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, type of mountingNot rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock

SizeM18x1

Type of mountingVia lock nut

Tightening torque20

Mounting typeFlush

Product weight43

Material housingPBTP, nickel-plated

Switching status indicationYellow LED

Ambient temperature with moving cable-5, 70

Degree of protectionIP67

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Additional information for sensor selectionWith standards-based switching distance

Electrical outputPNP

Selection of sensor designStandard

Accessories 14

Genuine accessories that can be used with the Festo SIEN-M18B-PS-S-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEDY-L2R1-V1-M12G5-U-0.3L-M12G4-5R	Distributor · Electrical accessories
NECB-M12G4-C2	Socket · Electrical accessories
NECB-M12W4-C2	Socket · Electrical accessories
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NECB-M12G5-C2	Socket · Electrical accessories
NECB-M12W5-C2	Socket · Electrical accessories
SIEZ-B-18	Sensor bracket · Mounting kits for proximity sensors, other sensors
NEDY-	Distributor · Electrical accessories
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5P-U-5-N-LE3	Connecting cable · Connecting cables
