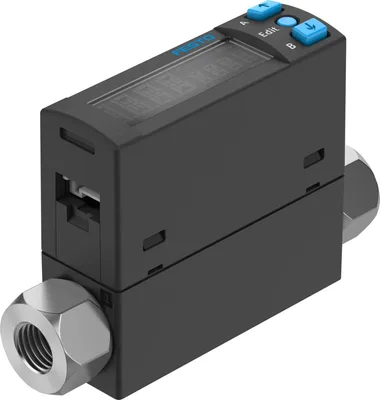

Festo SFAH-0.1U-G18FS-PNLK-PNVBA-L1

Flow sensor. Process air, compressed air, forming gas consumption and pneumatic object monitoring, handling ultra-small parts, leak test. Compact design 20x58 mm. Clear 2-line display. Mounting: H-rail mounting, wall or surface mounting, front panel mounting. Serial communication integrated using IO-Link® 1.1. Sustainable operation thanks to monitoring of process fluids

FestoMFR # SFAH-0.1U-G18FS-PNLK-PNVBA-L1SKU # YLS3DUPVFJYWXW

Symbol00995795

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E322346

Note on materialsRoHS compliant

Measured variableMass flow rate, Volumetric flow rate

Flow directionUnidirectional

Have questions?Chat on WhatsApp

About This Product

Festo SFAH-0.1U-G18FS-PNLK-PNVBA-L1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00995795

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E322346

Note on materialsRoHS compliant

Measured variableMass flow rate, Volumetric flow rate

Flow directionUnidirectional

Measuring principlethermal

Measurement methodHeat transfer

Start value for flow rate measuring range0.002

End value for flow rate measuring range0.1

Operating pressure-0.9, 10

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4], Nitrogen

Media temperature0, 50

Ambient temperature0, 50

Nominal temperature23

Accuracy of flow rate± (2% o.m.v. + 1% FS)

Repetition accuracy offset in ± %FS0.2

Repetition accuracy span in ± %FS0.8

Temperature coefficient span in ± %FS/Ktyp. 0.15%FS/K

Pressure influence span in ± %FS/bar1

Switching output2 x PNP or 2 x NPN, switchable

Switching functionWindow comparator, Threshold value comparator, Auto difference monitoring

Switching element functionNC or NO, switchable

Max. output current100

Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V

Flow characteristic curve start value0

Flow characteristic curve end value0.1

Max. load resistance current output500

Min. load resistance voltage output20

Short circuit current ratingYes

Overload protectionAvailable

ProtocolIO-Link®

IO-Link, Protocol versionDevice V 1.1

IO-Link, ProfileSmart sensor profile

IO-Link, Function classesBinary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel

IO-Link, communication modeCOM2 (38.4 kBaud)

IO-Link, SIO-Mode supportYes

IO-Link, Port classA

IO-Link, Process data length IN3 bytes

IO-Link, Process data content IN1 bit BDC (volume monitoring), 14 bit PDV (measured flow value), 2 bit BDC (flow monitoring)

IO-Link, Service data IN32-bit volume / mass measured value

IO-Link, Min. cycle time4 ms

IO-Link, Data storage required500

Operational voltage range DC22, 26

No-load supply current25

Reverse polarity protectionFor all electrical connections

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemPlug pattern L1J

Electrical connection 1, number of connections/cores4

Electrical connection 1, connection pattern00995428

Type of mountingWith accessories

Mounting positionAny

Pneumatic connectionFemale thread G1/8

Pneumatic connection, outlet directionStraight

Product weight90

Material housingReinforced PA

Material in contact with the mediumAnodised wrought aluminium alloy, Epoxy, NBR, Reinforced PA, Silicon, Silicon nitride, High-alloy stainless steel

Display typeIlluminated LCD, multi-colour

Displayable unitsg, g/min, l, l/h, l/min, scft, scft/h

Setting optionsIO-Link®, Teach-in, Via display and buttons

Protection against tamperingIO-Link®, PIN code

Degree of protectionIP40

Pressure drop5

Protection classIII

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Pollution degree3

Accessories 77

Genuine accessories that can be used with the Festo SFAH-0.1U-G18FS-PNLK-PNVBA-L1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/8-6	Push-in fitting · Fittings
QSL-G1/8-6	Push-in L-fitting · Fittings
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
SAMH-FH-W	Wall mounting · Mounting accessories
PUN-H-6X1-TBL	Plastic tubing · Tubes
SACC-FH-G-S3	Protective hood · Mounting accessories
SAMH-FH-H	DIN rail attachment · Mounting accessories
SAMH-FH-F	Panel mounting kit · Mounting accessories
NEBS-L1G4-K-2.5-LE4	Connecting cable · Connecting cables
NEBS-L1G4-K-5-LE4	Connecting cable · Connecting cables
GASA-EI-CTR-12M-1	AX Industrial App · Digital services
GASA-EI-CTR-12M-10	AX Industrial App · Digital services
GASA-EI-CTR-12M-20	AX Industrial App · Digital services
GASA-EI-CTR-12M-100	AX Industrial App · Digital services
GASA-EI-CTR-12M-1000	AX Industrial App · Digital services
NECB-S-M12G5-C2	Plug · Electrical accessories
CK-1/8-PK-4	Quick connector · Quick connectors
CK-1/8-PK-6	Quick connector · Quick connectors
CK-1/8-PK-3	Quick connector · Quick connectors
LCK-1/8-PK-3	Elbow quick connector · Quick connectors
TCK-1/8-PK-3	T quick connector · Quick connectors
LCK-1/8-PK-4	Elbow quick connector · Quick connectors
LCK-1/8-PK-6	Elbow quick connector · Quick connectors
TCK-1/8-PK-4	T quick connector · Quick connectors
TCK-1/8-PK-6	T quick connector · Quick connectors
CK-1/8-PK-3-KU	Quick connector · Quick connectors
CK-1/8-PK-4-KU	Quick connector · Quick connectors
CK-1/8-PK-6-KU	Quick connector · Quick connectors
LCK-1/8-PK-4-KU	Elbow quick connector · Quick connectors
LCK-1/8-PK-6-KU	Elbow quick connector · Quick connectors
TCK-1/8-PK-4-KU	T quick connector · Quick connectors
TCK-1/8-PK-6-KU	T quick connector · Quick connectors
CN-1/8-PK-3	Barbed fitting · Barbed fittings
CN-1/8-PK-4	Barbed fitting · Barbed fittings
CN-1/8-PK-6	Barbed fitting · Barbed fittings
LCN-1/8-PK-3	Barbed elbow fitting · Barbed fittings
LCN-1/8-PK-4	Barbed elbow fitting · Barbed fittings
LCN-1/8-PK-6	Barbed elbow fitting · Barbed fittings
TCN-1/8-PK-3	Barbed T-fitting · Barbed fittings
TCN-1/8-PK-4	Barbed T-fitting · Barbed fittings
TCN-1/8-PK-6	Barbed T-fitting · Barbed fittings
LCNH-1/8-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-1/8-PK-4	Barbed elbow fitting · Barbed fittings
LCNH-1/8-PK-6	Barbed elbow fitting · Barbed fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-8	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8	Push-in L-fitting, long · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
QS-V0-G1/8-8	Push-in fitting · Push-in fittings
QSL-V0-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/8-8	Push-in L-fitting · Push-in fittings
NECB-S-M12G4-C2	Plug · Electrical accessories
NECB-S-M12G4-C2-D	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
