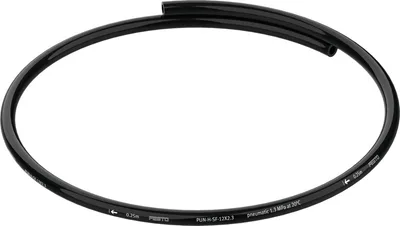

Festo PUN-H-SF-12X2,3-SW

Plastic tubing. Polyurethane. Very resistant to kinking and extremely sturdy thanks to increased wall thickness. Maximum flexibility despite increased wall thickness. High resistance to microbes and hydrolysis. Suitable for use with energy chains. Operating medium: compressed air, vacuum, water. Permitted operating media: Compressed air, vacuum, water in accordance with the manufacturer's declaration

FestoMFR # PUN-H-SF-12X2,3-SWSKU # YLSAW62NMZOEKOG

Outside diameter12

Flow-relevant bending radius45

Inside diameter7.4

Min. bending radius22

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

Festo PUN-H-SF-12X2,3-SW

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter12

Flow-relevant bending radius45

Inside diameter7.4

Min. bending radius22

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.3

Temperature-dependent operating pressure-0.95, 13

Temperature-dependent operating pressure-13.775, 188.5

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.7 MPa at 0–60 °C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-35, 80

Product weight according to length0.085

Pneumatic connectionFor push-in connector outside diameter of 12 mm

ColourBlack

Shore hardnessD 54 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)
