How can I get a price quote for Festo PEV-1/4-A-SW27-B-OD?

You can request a fast quote for Festo PEV-1/4-A-SW27-B-OD from Yılsa Engineering. Reference part number CEY-937FC7823912. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo PEV-1/4-A-SW27-B-OD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo PEV-1/4-A-SW27-B-OD genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo PEV-1/4-A-SW27-B-OD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

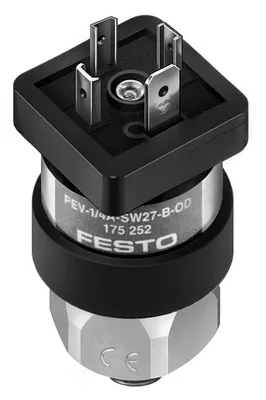

Festo PEV-1/4-A-SW27-B-OD

Pressure switch. Mechanical pressure and vacuum switch. Adjustable switching point. Mounting: screw-in, via through-holes or on an H-rail. Visual scale for pressure adjustment. Certification: CCC, c UL us - Recognized (OL), RCM

FestoMFR # PEV-1/4-A-SW27-B-ODSKU # CEY-937FC7823912

Symbol00991472

CE mark (see declaration of conformity)To EU Low Voltage Directive

Measured variableRelative pressure

Measurement methodPneumatic/electric pressure transducer

Operating pressure1, 10

Media temperature-20, 80

Have questions?Chat on WhatsApp

About This Product

Festo PEV-1/4-A-SW27-B-OD

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Symbol00991472

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Measured variableRelative pressure

Measurement methodPneumatic/electric pressure transducer

Operating pressure1, 10

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Media temperature-20, 80

Ambient temperature-30, 100

Switching element functionChangeover switch

Max. switching frequency3

Max. switching output voltage AC250

Max. switching output voltage DC250

Max. output current4000

Electrical connection4-pin, Plug

Type of mountingScrew-in

Mounting positionAny

Pneumatic connectionG1/4

Product weight900

Material housingPA66-GF30, Galvanised steel

Material membraneNBR

Setting range threshold value1, 10

Degree of protectionIP65

LABS (PWIS) conformityVDMA24364-B1/B2-L

Accessories 3

Genuine accessories that can be used with the Festo PEV-1/4-A-SW27-B-OD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PEV-1/4-WD-LED-24	Angled plug socket · Electrical accessories
PEV-1/4-WD-LED-230	Angled plug socket · Electrical accessories
MSSD-C-4P	Plug socket · Electrical accessories
