How can I get a price quote for FESTO PEV-1/4-WD-LED-24?

You can request a fast quote for FESTO PEV-1/4-WD-LED-24 from Yılsa Engineering. Reference part number CEY-937FC782428C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO PEV-1/4-WD-LED-24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO PEV-1/4-WD-LED-24 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO PEV-1/4-WD-LED-24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

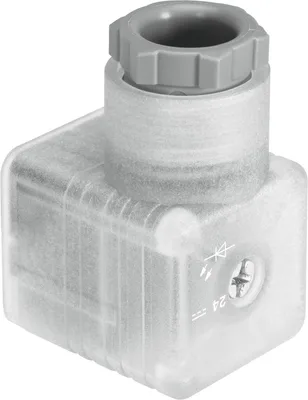

FESTO PEV-1/4-WD-LED-24

Angled plug socket. For pressure switch PEV. 15 ... 30, 180 V DC, 230 V AC. Available with LED display. Angled design

FESTOMFR # PEV-1/4-WD-LED-24SKU # CEY-937FC782428C

Based on standardEN 175301-803

Switching status indicationYellow LED, Green LED

Frequency of connection50

Note on contact durabilityElectrical connection 1

Type of mountingScrew-clamped

Cable outletAngled

Have questions?Chat on WhatsApp

About This Product

Angled plug socket. For pressure switch PEV. 15 ... 30, 180 V DC, 230 V AC. Available with LED display. Angled design

FESTO PEV-1/4-WD-LED-24

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 175301-803

Switching status indicationYellow LED, Green LED

Frequency of connection50

Note on contact durabilityElectrical connection 1

Type of mountingScrew-clamped

Cable outletAngled

Note on cable outletCan be rotated 90°

Mounting positionAny

Product weight30

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, connector systemPlug pattern type A to EN 175301-803

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingCentral screw M3

Electrical connection 2, functionControl side

Electrical connection 2, connector systemScrew terminal

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

Operational voltage range DC15, 30

Current rating at 40° C8

Protective conductor connectionAvailable

Cable fittingPg11

Permissible cable diameter4.5, 11

Connection cross section0.25, 1.5

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-40, 80

Note on ambient temperatureObserve derating

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Material housingReinforced PA66

Housing colourTransparent, White

Material screwsCoated steel

Material sealsFluoro rubber, NBR

Material electrical contactSilver-plated copper alloy
