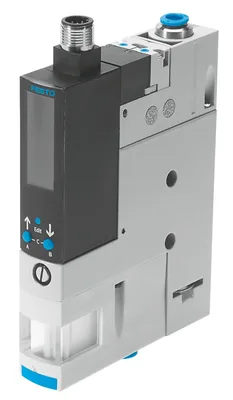

FESTO OVEM-05-H-B-QO-CE-N-1P

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO OVEM-05-H-B-QO-CE-N-1P

Vacuum generator. Compact design. Monitoring with vacuum sensor with IO-Link®. Central electrical connection via an M12 plug. Maintenance-free operation and reduced noise level through an integrated, open silencer. Integrated filter with inspection window. Optionally with air-saving function and LCD display. Short switching times thanks to integrated solenoid valves. Adjustable ejector pulse: precise and safe depositing of the workpiece. Sustainable operation with air-saving circuit

FESTOMFR # OVEM-05-H-B-QO-CE-N-1PSKU # CEY-937FC781F7BC
Nominal size, Laval nozzle0.45
Grid dimension20
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40
Share
Have questions?Chat on WhatsApp

About This Product

Vacuum generator. Compact design. Monitoring with vacuum sensor with IO-Link®. Central electrical connection via an M12 plug. Maintenance-free operation and reduced noise level through an integrated, open silencer. Integrated filter with inspection window. Optionally with air-saving function and LCD display. Short switching times thanks to integrated solenoid valves. Adjustable ejector pulse: precise and safe depositing of the workpiece. Sustainable operation with air-saving circuit

FESTO OVEM-05-H-B-QO-CE-N-1P

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Nominal size, Laval nozzle0.45
Grid dimension20
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40
Manual overrideNon-detenting
Integrated functionEjector pulse valve, electric, Flow control, On/off valve, electric, Filter, Check valve, Open silencer, Vacuum switch
DesignModular
Short circuit current ratingYes
Measured variableRelative pressure
Measuring principlePiezoresistive
Switching element functionN/O contact
Switching functionThreshold value comparator, Threshold value with fixed hysteresis
Symbol00992094
Valve functionClosed
Reverse polarity protectionFor all electrical connections
Standard switching inputIEC 61131-2
Display typeLED
Setting optionsTeach-in
Switching position indicatorLED
Switching status indicationOptical
Setting range threshold value-1, 0
Operating pressure2, 8
Operating pressure for max. vacuum5.1
Max. vacuum93
Nominal operating pressure6
Max. suction flow rate against atmosphere6
Air supply time at nominal operating pressure2
Operational voltage range DC20.4, 27.6
Duty cycle100%
Inductive protective circuitAdapted to MZ, MY, ME coils
Insulation voltage50
No-load supply current80
Max. output current100
Off-state current0.1
Switching outputPNP
Voltage drop1.5
Characteristic coil data24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
Immunity to surge0.8
Overload protectionAvailable
Pollution degree3
ApprovalRCM, c UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature0, 50
Relative air humidity5 - 85%
Sound pressure level at nominal operating pressure51
Degree of protectionIP65
Protection classIII
Ambient temperature0, 50
Max. tightening torque0.8 Nm with female thread, 2.5 Nm with through-hole
Product weight315
Pressure measuring range-1, 0
Accuracy in ± % FS0.5
Hysteresis0.02
Reproducibility of switching values FS0.6
Switching logic for inputsPNP (positive switching)
Electrical connectionM12x1, Plug
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connection, port 1QS-6
Pneumatic connection, port 3Integrated silencer
Vacuum connectionQS-6
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterFabric, Process automation, Sintered steel
Material filter housingReinforced PA
Material housingDie-cast aluminium, Reinforced PA
Material adjusting screwSteel
Material silencerWrought aluminium alloy, Polyurethane foam
Material screwsSteel
Material connector housingBrass, nickel-plated
Material electrical contactGold-plated brass
Material pinsSteel
Material transmitter nozzleWrought aluminium alloy
Material keypadReinforced PA
Material fittingBrass, nickel-plated

Accessories 87

Genuine accessories that can be used with the FESTO OVEM-05-H-B-QO-CE-N-1P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
HRM-1Mounting bracket · Mounting accessories
OABM-HDIN rail attachment · Mounting accessories
PUN-H-6X1-NTPlastic tubing · Tubes
PUN-H-6X1-BLPlastic tubing · Tubes
PUN-H-6X1-SWPlastic tubing · Tubes
PUN-H-6X1-TBLPlastic tubing · Tubes
PUN-6X1-SIPlastic tubing · Tubing
PAN-6X1-SIPlastic tubing · Tubing
PUN-6X1-BLPlastic tubing · Tubing
PUN-6X1-SWPlastic tubing · Tubing
PUN-6X1-RTPlastic tubing · Tubing
PUN-6X1-GEPlastic tubing · Tubing
PUN-6X1-GNPlastic tubing · Tubing
PLN-6X1-NTPlastic tubing · Tubing
PLN-6X1-SWPlastic tubing · Tubing
PUN-6X1-S-1-BLSpiral plastic tubing · Tubing
PUN-6X1-S-2-BLSpiral plastic tubing · Tubing
PUN-6X1-S-6-BLSpiral plastic tubing · Tubing
PUN-6X1-S-1-SWSpiral plastic tubing · Tubing
PUN-6X1-S-2-SWSpiral plastic tubing · Tubing
PUN-6X1-S-6-SWSpiral plastic tubing · Tubing
PUN-6X1-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-SI-500Plastic tubing · Tubing
PUN-6X1-BL-500Plastic tubing · Tubing
PAN-R-6X1,1-SIHeavy-duty tubing · Tubing
PEN-6X1-SWPlastic tubing · Tubing
PEN-6X1-NTPlastic tubing · Tubing
PAN-6X1-NTPlastic tubing · Tubing
PEN-6X1-SW-500Plastic tubing · Tubing
PEN-6X1-BL-500Plastic tubing · Tubing
PEN-6X1-SI-500Plastic tubing · Tubing
PEN-6X1-BLPlastic tubing · Tubing
PEN-6X1-SIPlastic tubing · Tubing
PEN-6X1-GNPlastic tubing · Tubing
PEN-6X1-RTPlastic tubing · Tubing
PEN-6X1-GEPlastic tubing · Tubing
PAN-6X1-SI-500Plastic tubing · Tubing
PAN-6X1-BL-500Plastic tubing · Tubing
PAN-6X1-SW-500Plastic tubing · Tubing
PAN-6X1-BLPlastic tubing · Tubing
PAN-6X1-SWPlastic tubing · Tubing
PAN-6X1-GNPlastic tubing · Tubing
PAN-6X1-RTPlastic tubing · Tubing
PAN-6X1-GEPlastic tubing · Tubing
PUN-6X1-SW-500Plastic tubing · Tubing
PLN-6X1-BLPlastic tubing · Tubing
PLN-6X1-SIPlastic tubing · Tubing
PLN-6X1-RTPlastic tubing · Tubing
PUN-H-6X1-SW-500Plastic tubing · Tubing
PUN-H-6X1-BL-500Plastic tubing · Tubing
PUN-H-6X1-NT-500Plastic tubing · Tubing
PUN-H-6X1-SI-500Plastic tubing · Tubing
PUN-H-6X1-SIPlastic tubing · Tubing
PUN-H-6X1-RTPlastic tubing · Tubing
PUN-H-6X1-GNPlastic tubing · Tubing
PUN-H-6X1-GEPlastic tubing · Tubing
PAN-MF-6X1-SWPlastic tubing · Tubing
PAN-MF-6X1-SW-500Plastic tubing · Tubing
PUN-H-6X1-TBL-500Plastic tubing · Tubing
PUN-H-6X1-TSWPlastic tubing · Tubing
PUN-H-6X1-TSW-500Plastic tubing · Tubing
PUN-H-6X1-TRTPlastic tubing · Tubing
PUN-H-6X1-TRT-500Plastic tubing · Tubing
PUN-H-6X1-TGNPlastic tubing · Tubing
PUN-H-6X1-TGN-500Plastic tubing · Tubing
PUN-H-6X1-TGEPlastic tubing · Tubing
PUN-H-6X1-TGE-500Plastic tubing · Tubing
NEBA-M12G5-U-2.5-N-LE5Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5 Connecting cable · Connecting cables
PUN-H-F-6X1-RTPlastic tubing · Tubing
PUN-H-F-6X1-BLPlastic tubing · Tubing
PUN-H-F-6X1-TBLPlastic tubing · Tubing
PUN-H-F-6X1-GNPlastic tubing · Tubing
PUN-H-F-6X1-GEPlastic tubing · Tubing
PUN-H-F-6X1-SWPlastic tubing · Tubing
PUN-H-F-6X1-NTPlastic tubing · Tubing
PUN-H-SF-6X1,25-SWPlastic tubing · Tubing
PUN-H-SF-6X1,25-BLPlastic tubing · Tubing
PUN-H-6X1-RT-25Plastic tubing · Tubing
PUN-H-6X1-BL-25Plastic tubing · Tubing
PUN-H-6X1-SW-25Plastic tubing · Tubing
PUN-H-6X1-TBL-25Plastic tubing · Tubing

Related Products

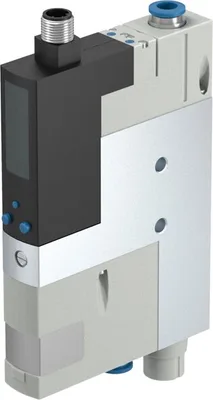

OVEM-10-H-B-QO-CE-N-LK
Festo OVEM-10-H-B-QO-CE-N-LK
View Details

Festo

OVEM-10-H-B-QO-CE-N-LK

MFR #OVEM-10-H-B-QO-CE-N-LK

SKU #YLS9LOV6HG37XAX

OVEM-10-H-B-QO-CE-N-1PD
Festo OVEM-10-H-B-QO-CE-N-1PD
View Details

Festo

OVEM-10-H-B-QO-CE-N-1PD

MFR #OVEM-10-H-B-QO-CE-N-1PD

SKU #YLSFYFNM8HIYNNN

OVEM-14-H-B-QO-CE-N-1PD
Festo OVEM-14-H-B-QO-CE-N-1PD
View Details

Festo

OVEM-14-H-B-QO-CE-N-1PD

MFR #OVEM-14-H-B-QO-CE-N-1PD

SKU #YLSC1SV9TDMQADU

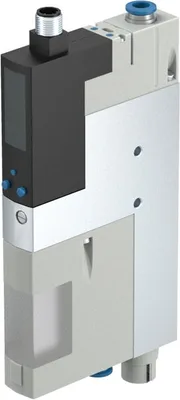

OVEM-14-H-B-QO-CE-N-LK
Festo OVEM-14-H-B-QO-CE-N-LK
View Details

Festo

OVEM-14-H-B-QO-CE-N-LK

MFR #OVEM-14-H-B-QO-CE-N-LK

SKU #YLSLFSBD3XRLFZ

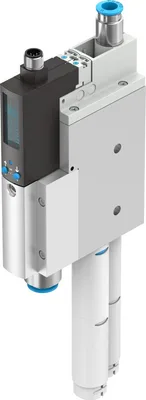

OVEM-20-H-C-QO-CE-N-LK
Festo OVEM-20-H-C-QO-CE-N-LK
View Details

Festo

OVEM-20-H-C-QO-CE-N-LK

MFR #OVEM-20-H-C-QO-CE-N-LK

SKU #YLSZSCFHKHBXKZB

OVEM-20-H-C-QO-CE-N-2P
Festo OVEM-20-H-C-QO-CE-N-2P
View Details

Festo

OVEM-20-H-C-QO-CE-N-2P

MFR #OVEM-20-H-C-QO-CE-N-2P

SKU #YLSWXCOASXEE6TU

OVEM-20-H-C-QO-CE-N-1PD
Festo OVEM-20-H-C-QO-CE-N-1PD
View Details

Festo

OVEM-20-H-C-QO-CE-N-1PD

MFR #OVEM-20-H-C-QO-CE-N-1PD

SKU #YLSPMWQRQBYS52

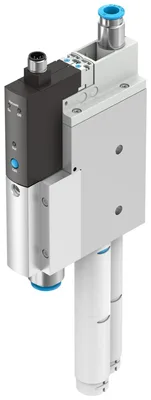

OVEM-20-H-C-QO-CE-N-1P
