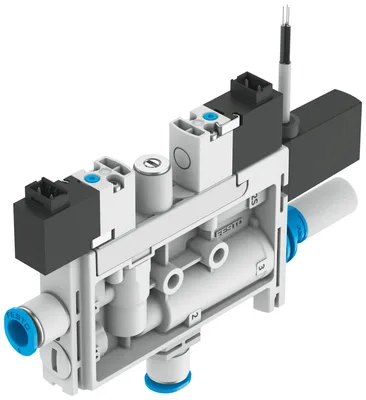

OVEM-10-H-B-QO-CE-N-LK
MFR #OVEM-10-H-B-QO-CE-N-LK
SKU #YLS9LOV6HG37XAX
Photo may not represent actual item. Refer to name and product specs for all details.
Festo OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3
Vacuum generator. Low-cost, compact vacuum generator. Light weight. Various performance levels and vacuum types. Short switching times thanks to integrated solenoid valves. Quick, precise and safe placement of the workpiece via the ejector pulse. Easy assembly. Minimal installation costs. Sustainable operation thanks to reduced pressure level. RA1 version with robot connection, enables fast integration in lightweight robot environments
Nominal size, Laval nozzle0.95
Grid dimension15
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40
About This Product
Vacuum generator. Low-cost, compact vacuum generator. Light weight. Various performance levels and vacuum types. Short switching times thanks to integrated solenoid valves. Quick, precise and safe placement of the workpiece via the ejector pulse. Easy assembly. Minimal installation costs. Sustainable operation thanks to reduced pressure level. RA1 version with robot connection, enables fast integration in lightweight robot environments
Festo OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-H3
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Nominal size, Laval nozzle0.95
Grid dimension15
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40
Manual overrideNon-detenting
Integrated functionEjector pulse, electrical, Flow control, Pressure sensor, On/off valve, electric, Filter, Open silencer
DesignT-shape
Switching element functionNC or NO, switchable
Switching functionFreely programmable
Symbol00995804
Valve functionClosed
Measurement methodPiezoresistive pressure sensor with display
Display typeLED indicator, 2 digits
Setting optionsIO-Link®, Teach-in, Via display and buttons
Operating pressure for max. suction flow rate0.4
Operating pressure for max. suction flow rate4
Operating pressure for max. suction flow rate58
Operating pressure0.2, 0.7
Operating pressure2, 7
Operating pressure29, 101.5
Operating pressure for max. vacuum0.38
Operating pressure for max. vacuum3.8
Operating pressure for max. vacuum55.1
Max. vacuum92
Nominal operating pressure0.4
Nominal operating pressure4
Nominal operating pressure58
Max. suction flow rate against atmosphere21
Air supply time at nominal operating pressure with ejector pulse1
Operational voltage range DC21.6, 26.4
Duty cycle100%
Switching outputPNP/NPN, switchable
Characteristic coil data24 V DC: 1.0 W
Approvalc UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature0, 50
Sound pressure level at nominal operating pressure68
Degree of protectionIP40
Ambient temperature0, 50
Product weight92
Operating voltage range, DC sensor18, 30
Pressure measuring range-0.1, 0
Pressure measuring range-1, 0
Pressure measuring range-14.5, 0
Electrical connection input, functionEjector pulse, Vacuum generation
Electrical connection input, connection type2x plugs
Electrical connection input, connector systemPlug pattern H
Electrical connection input, number of connections/cores2
Electrical connection input, connection pattern00995626
Input electrical connection, mounting typeSnap-locking
Electrical connection output, functionSensor
Electrical connection output, connection typeCable
Electrical connection output, connector systemOpen end
Electrical connection output, number of connections/cores3
Cable characteristicSuitable for energy chains
Cable diameter2.9
Cable diameter tolerance± 0.1 mm
Cable length2.5
Nominal cross section conductor0.14
Type of mountingWith through-hole
Pneumatic connection, port 1For tubing outside diameter of 6 mm
Pneumatic connection, port 3Open silencer
Vacuum connectionFor tubing O.D. 6 mm
Cable sheath colourGrey
Material connecting threadPOM
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterPOM
Material housingReinforced PA
Material cable sheathPVC
Material adjusting screwSteel
Material silencerReinforced PA, Packaging unit
Material screwsSteel
Material transmitter nozzleWrought aluminium alloy
