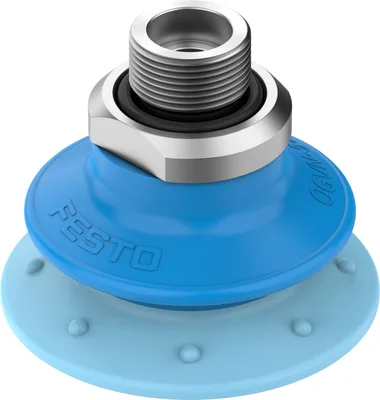

Festo OGVN-52-A-U-G38

Suction cup with connection. Ideal for workpieces with uneven surfaces. Easy to replace the suction cup material without the need for tools. Made from wear-resistant polyurethane. Easy to mount, even when the installation space is limited, thanks to hex socket. Recommended for production plants for the manufacture of Li-ion batteries (F1A)

FestoMFR # OGVN-52-A-U-G38SKU # YLSKOSU3UUDWVB8

Height compensator for suction cup11.2

Nominal size8

Suction cup diameter52

Suction cup volume13.3

Position of connectionOn top

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo OGVN-52-A-U-G38

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup11.2

Nominal size8

Suction cup diameter52

Suction cup volume13.3

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound protective bellows 1.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1/A2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature10, 45

Holding force at nominal operating pressure90

Lateral force at nominal operating pressure65

Product weight14.2

Type of mountingVia vacuum port

Vacuum connectionG3/8

ColourBlue/light blue

Shore hardnessA 70 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupPUR
