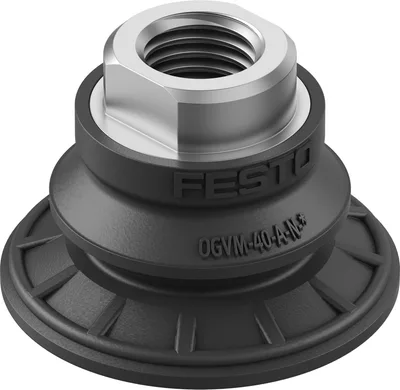

Festo OGVM-40-A-N-G14F

Suction cup with connection. Extremely energy efficient, very high transverse forces, minimal suction times. Optimum suction ergonomics for maximum process reliability. Ideal for workpieces with complex contours. Accessories available for a wide range of applications. Suction cup shape round or oval, in various designs

FestoMFR # OGVM-40-A-N-G14FSKU # YLSARTDFO6XIQFE

Height compensator for suction cup10

Min. workpiece radius30

Nominal size4

Suction cup diameter40

Suction cup volume7.8

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

Festo OGVM-40-A-N-G14F

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup10

Min. workpiece radius30

Nominal size4

Suction cup diameter40

Suction cup volume7.8

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound protective bellows 1.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.06

Nominal operating pressure-0.6

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-20, 80

Holding force at nominal operating pressure60

Lateral force at nominal operating pressure62

Product weight17

Type of mountingVia vacuum port

Vacuum connectionFemale thread G1/4

ColourBlack

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 4

Genuine accessories that can be used with the Festo OGVM-40-A-N-G14F motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAL-1/4-20-F1A	Length compensator · Mounting accessories
ISV-1/4-F1A	Vacuum security valve · Valves
NPFC-D-2G14-M	Double nipple · Mounting accessories
NPFC-D-2G14-M-P100	Double nipple · Mounting accessories
