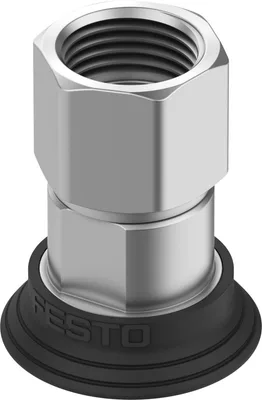

Festo OGVM-30-S-N-G38F

Suction cup with connector. Extremely energy efficient, very high transverse forces, minimal suction times. Optimum suction ergonomics for maximum process reliability. Ideal for workpieces with complex contours. Accessories available for a wide range of applications. Suction cup shape round or oval, in various designs

FestoMFR # OGVM-30-S-N-G38FSKU # YLSCNYPY3CHGGA

Height compensator for suction cup3

Min. workpiece radius35

Nominal size4

Suction cup diameter30

Suction cup volume1.8

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

Festo OGVM-30-S-N-G38F

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup3

Min. workpiece radius35

Nominal size4

Suction cup diameter30

Suction cup volume1.8

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.06

Nominal operating pressure-0.6

Nominal operating pressure-8.7

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1/A2-L

Ambient temperature-20, 80

Holding force at nominal operating pressure36

Lateral force at nominal operating pressure35

Product weight21

Type of mountingVia vacuum port

Vacuum connectionFemale thread G3/8

ColourBlack

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 4

Genuine accessories that can be used with the Festo OGVM-30-S-N-G38F motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAL-3/8-80-F1A	Length compensator · Mounting accessories
ISV-3/8	Vacuum security valve · Valves
NPFC-D-2G38-M	Double nipple · Mounting accessories
NPFC-D-2G38-M-P50	Double nipple · Mounting accessories
