How can I get a price quote for Festo OGVM-125-S-N-G38F?

You can request a fast quote for Festo OGVM-125-S-N-G38F from Yılsa Engineering. Reference part number YLS4BB2XPWL7UQI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo OGVM-125-S-N-G38F in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo OGVM-125-S-N-G38F genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo OGVM-125-S-N-G38F?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

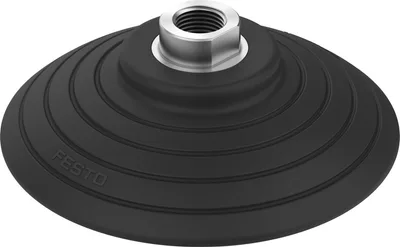

Festo OGVM-125-S-N-G38F

Suction cup with connector. Extremely energy efficient, very high transverse forces, minimal suction times. Optimum suction ergonomics for maximum process reliability. Ideal for workpieces with complex contours. Accessories available for a wide range of applications. Suction cup shape round or oval, in various designs

FestoMFR # OGVM-125-S-N-G38FSKU # YLS4BB2XPWL7UQI

Height compensator for suction cup12.5

Min. workpiece radius135

Nominal size8

Suction cup diameter125

Suction cup volume132

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

Festo OGVM-125-S-N-G38F

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup12.5

Min. workpiece radius135

Nominal size8

Suction cup diameter125

Suction cup volume132

Position of connectionOn top

Mounting positionAny

Symbol00991485

Suction cup shapeRound, flat

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.06

Nominal operating pressure-0.6

Nominal operating pressure-8.7

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1/A2-L

Ambient temperature-20, 80

Holding force at nominal operating pressure606

Lateral force at nominal operating pressure429

Product weight146

Type of mountingVia vacuum port

Vacuum connectionFemale thread G3/8

ColourBlack

Shore hardness60 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 4

Genuine accessories that can be used with the Festo OGVM-125-S-N-G38F motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAL-3/8-80-F1A	Length compensator · Mounting accessories
ISV-3/8	Vacuum security valve · Valves
NPFC-D-2G38-M	Double nipple · Mounting accessories
NPFC-D-2G38-M-P50	Double nipple · Mounting accessories
