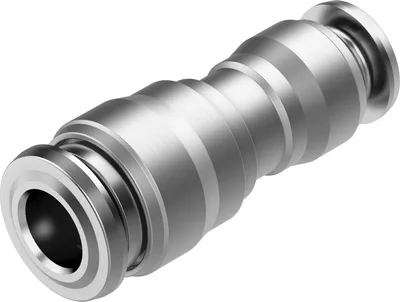

Festo NPQR-D-Q6-Q4

Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQR-D-Q6-Q4SKU # YLSHRM8DFJOMBT

SizeStandard

Nominal size3

Tubing insertion depth14, 16.1

Note on the tubing insertion depthØ4 depth 14 mm, Ø6 depth 16.1 mm

Mounting positionAny

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

Festo NPQR-D-Q6-Q4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size3

Tubing insertion depth14, 16.1

Note on the tubing insertion depthØ4 depth 14 mm, Ø6 depth 16.1 mm

Mounting positionAny

DesignStraight design

Size of pack1

DesignPush-pull principle

Symbol00997424

Operating pressure complete temperature range-0.095, 1.6

Operating pressure complete temperature range-0.95, 16

Operating pressure complete temperature range-13.775, 232

Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C

Certificate issuing authorityNSF C0556009

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Suitable for use with foodSee declaration of conformity, NSF/ANSI 169

Ambient temperature-20, 150

Product weight12

Pneumatic connection, port 1For tubing outside diameter of 6 mm

Pneumatic connection, port 2For tubing outside diameter of 4 mm

Colour of release ringSilver

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Guard ring materialHigh-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialPPSU

Accessories 39

Genuine accessories that can be used with the Festo NPQR-D-Q6-Q4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PFAN-6X1-NT	Plastic tubing · Tubes
PFAN-4X0,75-NT	Plastic tubing · Tubes
PM-6	Plastic-coated metal tube · Connection accessories
PAN-V0-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SI	Plastic tubing · Tubing
PAN-V0-6X1-SW	Plastic tubing · Tubing
PLN-6X1-NT	Plastic tubing · Tubing
PLN-6X1-SW	Plastic tubing · Tubing
PAN-V0-6X1-GN	Plastic tubing · Tubing
PAN-V0-6X1-RT	Plastic tubing · Tubing
PAN-V0-6X1-WS	Plastic tubing · Tubing
PAN-V0-6X1-GE	Plastic tubing · Tubing
PAN-R-6X1,1-SI	Heavy-duty tubing · Tubing
PEN-6X1-SW	Plastic tubing · Tubing
PEN-6X1-NT	Plastic tubing · Tubing
PAN-6X1-NT	Plastic tubing · Tubing
PEN-6X1-SW-500	Plastic tubing · Tubing
PEN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SI-500	Plastic tubing · Tubing
PEN-6X1-BL	Plastic tubing · Tubing
PEN-6X1-SI	Plastic tubing · Tubing
PEN-6X1-GN	Plastic tubing · Tubing
PEN-6X1-RT	Plastic tubing · Tubing
PEN-6X1-GE	Plastic tubing · Tubing
PAN-6X1-SI-500	Plastic tubing · Tubing
PAN-6X1-BL-500	Plastic tubing · Tubing
PAN-6X1-SW-500	Plastic tubing · Tubing
PAN-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SW	Plastic tubing · Tubing
PAN-6X1-GN	Plastic tubing · Tubing
PAN-6X1-RT	Plastic tubing · Tubing
PAN-6X1-GE	Plastic tubing · Tubing
PLN-6X1-BL	Plastic tubing · Tubing
PLN-6X1-SI	Plastic tubing · Tubing
PLN-6X1-RT	Plastic tubing · Tubing
PAN-MF-6X1-SW	Plastic tubing · Tubing
PAN-MF-6X1-SW-500	Plastic tubing · Tubing
PTFEN-6X1-NT-100	Plastic tubing · Tubing
PTFEN-6X1-NT-500	Plastic tubing · Tubing
